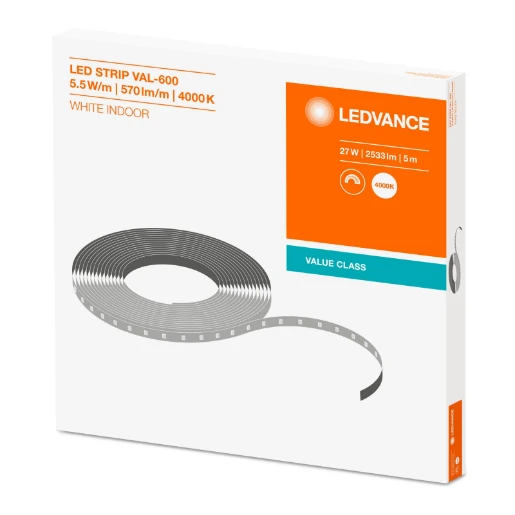

LED STRIP VALUE-600 -600/840/5
Part Number:
2501188828
MPN:
4058075296930
- Product Type:
- LED Lamps
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
LED strips with 600 lm/m for general applications. Product features: Flexible and cuttable LED strip. Smallest cuttable unit: 100 mm. Lifetime (L70/B50): up to 20,000 h at Tc max.: 65°C. Luminous flux: 600 lm/m. Color rendering index Ra: > 80. Available with light color: Warm White, White, Daylight. Product benefits: Great scope of design options due to long and flexible LED strips. Easy mounting on many smooth surfaces thanks to self-adhesive tape. Maximum flexibility due to large range of accessories. Simple connection thanks to integrated cables on both sides. Areas of application: General indoor illumination. Decorative illumination. Private living areas.
- · Flexible and cuttable LED strip
- · Smallest cuttable unit: 100 mm
- · Luminous flux: 600 lm/m
- · Luminous flux: 600 lm/m
- · Color rendering index Ra: > 80
- · Available with light color: Warm White, White, Daylight
- · Dimmable with suitable drivers, see also "www.ledvance.com/dim"
- · Great scope of design options due to long and flexible LED strips
- · Easy mounting on many smooth surfaces thanks to self-adhesive tape
- · Maximum flexibility due to large range of accessories
Technical Specifications
Technical Specifications
LED strip | |
| Model | Cassette receiver |
|---|---|
| Light source type | Digital-sat |
| Colour rendering index (CRI/Ra) | Toothbrush |
| Width | 8 mm |
| Beam angle | 120 ° |
| Conductor cross section | 0.5 mm² |
| Diameter | - mm |
| Number of LEDs per metre | 60 |
| Lamp power per meter | 5.5 W |
| Height/depth | - mm |
| Minimum bending radius | 30 mm |
| Length of particular segments | 100 mm |
| Number of poles | 2 |
| Number of LEDs per foot | 18 |
| Luminous flux per meter | 570 lm |
| Rated life time L70/B50 at 25 °C | 20000 h |
| Maximum system power | 27 W |
| Lamp power per foot | - W |
|---|---|
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Power factor | - |
| Lamp voltage | 24 - 24 V |
| Colour temperature | 4000 - 4000 K |
| Self-adhesive | Yes |
| With end piece | No |
| With connection set | No |
| With protective cover | No |
| Suitable for dimmer | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Replaceable control gear | No |
| Constant luminous flux control | No |
