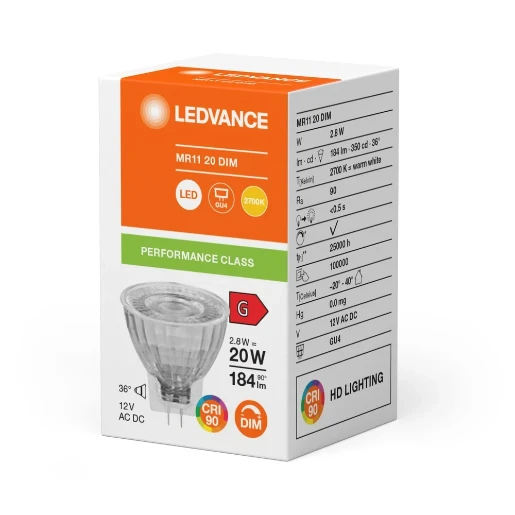

PARATHOM® DIM MR11 20 36° 3.2W 2700K GU4
Part Number:
2501002154
MPN:
4099854050206
- Product Type:
- LED MR11
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Dimmable low-voltage LED reflector lamps MR11 with retrofit pin base. Product features: LED alternative to low voltage halogen lamps. High color consistency: = 6 SDCM. Dimmable. Base: G4. Lamp made of glass. Very high color rendering (Ra: 90). Lifetime: up to 25,000 h. Product benefits: Quick, simple and safe replacement without rewiring. Design, dimensions, luminous flux comparable to an incandescent or halogen lamp. Low maintenance costs thanks to long lifetime. No UV and near-IR radiation in the light beam. Stepless dimming. Very high dimmer compatibility, see also "www.ledvance.com/dim". Compatible with many common conventional and electronic control gears (see also "compatibility list"). Instant 100 % light, no warm-up time. Areas of application: Shops and exhibition rooms. Domestic applications. Commercial applications. Accent lighting. Outdoor use in outdoor luminaires only (minimum IP65).
- · LED alternative to low voltage halogen lamps
- · High color consistency: = 6 SDCM
- · Base: G4
- · Base: G4
- · Lamp made of glass
- · Very high color rendering (Ra: 90)
- · Lifetime: up to 25,000 h
- · Quick, simple and safe replacement without rewiring
- · Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- · Low maintenance costs thanks to long lifetime
Technical Specifications
Technical Specifications
LED Lamp | |
| Cap | GU4 |
|---|---|
| Lamp shape | Reflector |
| Energy efficiency class according to EU regulation 2019/2015 | G |
| Colour of light acc. EN 12464-1 | Warm <3300 K |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Colour rendering index (CRI/Ra) | 90-100 |
| Photobiological safety according to EN 62471 | RG1 |
| Lamp designation | MR11 |
| Type of glass/cover | Clear |
| Voltage type | AC/DC |
| Degree of protection (IP rating) | IP20 |
| Luminous intensity | 350 cd |
| Weighted energy consumption in 1,000 hours | 3 kWh |

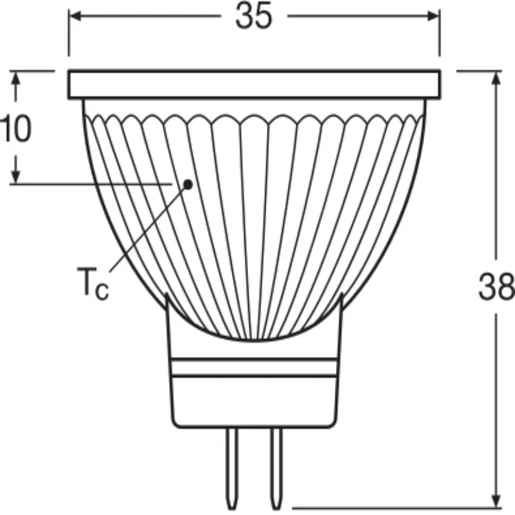

| Length | 38 mm |
| Rated luminous flux according to IEC 62612 | 184 lm |
| Min. number of switching cycles | 100000 |
| Lamp efficacy | 65 lm/W |
| Average nominal lifespan | 25000 h |
| Power factor | 0.5 |
| Diameter | 35 mm |
| Nominal voltage | 12 - 12 V |
| Nominal current | 240 - 240 mA |
| Colour temperature | 2700 - 2700 K |
|---|---|
| Beam angle | 36 - 36 ° |
| Lamp power | 2.8 - 2.8 W |
| Luminous flux | 184 - 184 lm |
| With movement sensor | No |
| Compatible with Amazon Alexa | No |
| With remote control | No |
| Remote operation possible | No |
| Compatible with Google Assistant | No |
| IFTTT support available | Yes |
| Compatible with Apple HomeKit | No |
| Suitable for electronic ballast | No |
| Dimming trailing edge | Yes |
| Dimming Zigbee | No |
| Dimming Wi-Fi | No |
| Filament lamp | No |
| Dimming Bluetooth | No |
| Suitable for magnetic ballast | No |
| Dimming leading edge | Yes |
| With twilight switch | No |
| Dimming touch and dim | No |
