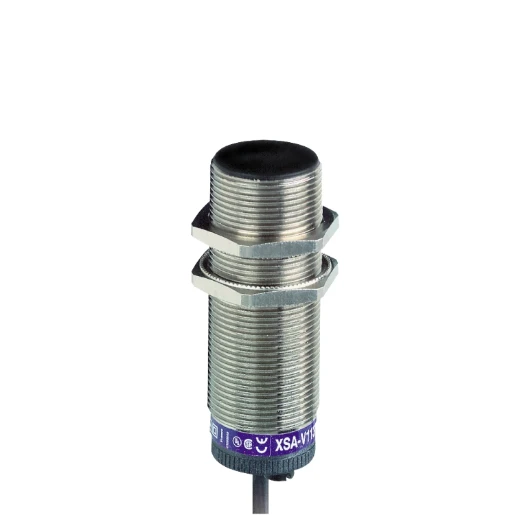

Sensor Proximity Inductive Cylindrical 6…150 cyc/mn
Part Number:
2500156444
MPN:
XSAV11801
- Product Type:
- Proximity Sensors
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
This cylindrical diameter 30 mm threaded M30 x 1.5 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products). It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 10mm, two-wire, AC/DC supply, 24 to 240 V AC 50/60 Hz or 24 to 210 V DC , NC function output. These self-contained rotation speed monitoring sensors have the special feature of incorporating, in the same case, the pulse sensing and processing electronics as well as the output switching amplifier. That are required to establish an integrated rotation monitoring device. The unit provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading, etc. In the following applications, conveyor belts, bucket elevators, Archemedian screws, grinders, crushers, pumps, centrifugal driers, mixers, etc.
- · This cylindrical diameter 30 mm threaded M30 x 1.5 flush mountable sensor is part of XS range, an offer of inductive proximity sensors for the detection, without physical contact, of metal objects.
- · The advantages of inductive detection are numerous, no physical contact with the object to be detected, thus avoiding wear and enabling detection of fragile or freshly painted objects.
- · High operating rates. Fast response. Excellent resistance to industrial environments (robust products).
- · It features a nickel plated brass case and a 2m long cable. It has a sensing distance of 10mm, two-wire, AC/DC supply, 24 to 240 V AC 50/60 Hz or 24 to 210 V DC , NC function output.
- · These self-contained rotation speed monitoring sensors have the special feature of incorporating, in the same case, the pulse sensing and processing electronics as well as the output switching amplifier.
- · That are required to establish an integrated rotation monitoring device.
- · The unit provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading, etc.
- · In the following applications, conveyor belts, bucket elevators, Archemedian screws, grinders, crushers, pumps, centrifugal driers, mixers, etc.
- · IP Rating: IP67
- · CE: yes
Technical Specifications
Technical Specifications
Inductive proximity switch | |
| SIL according to IEC 61508 | None |
|---|---|
| Performance level acc. to EN ISO 13849-1 | None |
| Type of interface for safety communication | None |
| Interface type | None |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Construction type housing | Cylinder, screw-thread |
| Mechanical mounting condition for sensor | Concise |
| Coating housing | Nickel-plated |
| Housing material | Metal |
| Type of switch function | Breaker contact |
| Type of switching output | PNP/PNP |
| Interference resistance to magnetic fields | Immune against magnetic DC- and AC-field |
| Type of electric connection | Cable radial |
| Voltage type | AC/DC |
| Type of actuation | Metallic Target |
| Switching frequency | 100 Hz |
| Width sensor | - mm |
| Number of semiconductor outputs with signalling function | 1 |
|---|---|
| Number of protected semiconductor outputs | 0 |
| Switching distance | 10 mm |
| Number of contact energized outputs with signalling function | 0 |
| Height of sensor | - mm |
| Diameter sensor | 30 mm |
| Length of sensor | 81 mm |
| Max. output current at protected output | 200 mA |
| Number of protected contact energized outputs | 0 |
| Rated control supply voltage at DC | 24 - 210 V |
| Supply voltage | 24 - 240 V |
| Rated control supply voltage at AC 50 Hz | 24 - 240 V |
| Rated control supply voltage at AC 60 Hz | 24 - 240 V |
| Suitable for safety functions | No |
| With monitoring function downstream switching devices | No |
| Compression-resistant | No |
| Cascadable | No |
