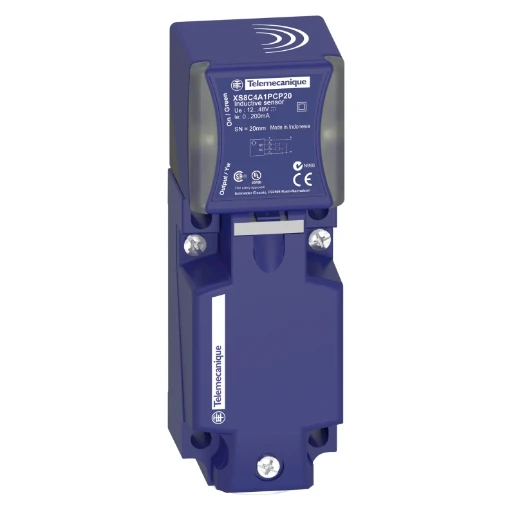

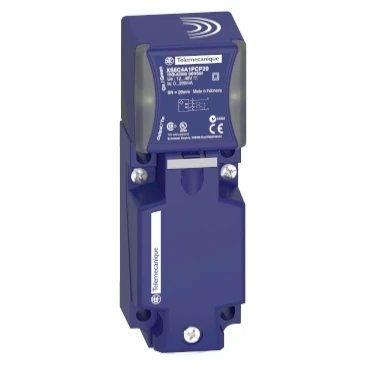

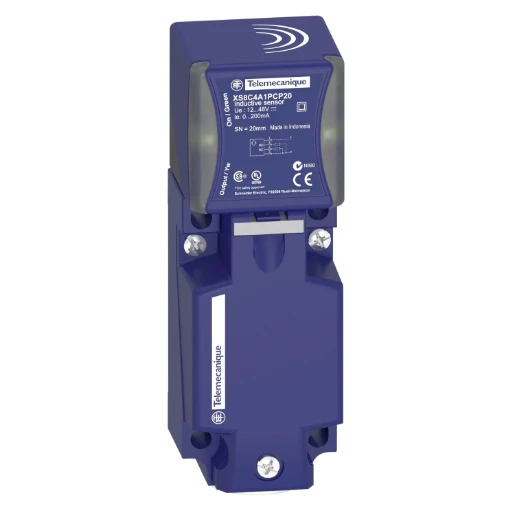

Osisense XS8 Inductive Sensor 12-48V DC - 40mm operating zone
Part Number:
2500681105
MPN:
XS8C4A4PCP20
- Product Type:
- Proximity Sensors
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 48V DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. It can operate in very cold (-25°C) and hot environments (+70°C). Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
- · This XS turret head (40 x 40 x 117 mm) with an inductive proximity sensor has a PBT case.
- · It has a supply voltage of 12V to 48V DC.
- · This general purpose flat inductive proximity sensor has an increased range.
- · It is mountable directly on a surface, thanks to 4 screws fixing points.
- · It provides mechanical resistance and chemical withstand thanks to PBT case.
Technical Specifications
Technical Specifications
Inductive proximity switch | |
| Interface type | None |
|---|---|
| Type of interface for safety communication | None |
| Performance level acc. to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Housing material | Plastic |
| Mechanical mounting condition for sensor | Not flat |
| Interference resistance to magnetic fields | Immune against magnetic DC-field |
| Construction type housing | Cuboid |
| Type of switching output | PNP/PNP |
| Type of actuation | Metallic Target |
| Voltage type | AC/DC |
| Type of electric connection | Screw connection |
| Switching distance | 40 mm |
| Switching frequency | 200 Hz |
| Number of contact energized outputs with signalling function | 0 |
| Width sensor | 117 mm |
|---|---|
| Number of semiconductor outputs with signalling function | 2 |
| Number of protected semiconductor outputs | 2 |
| Number of protected contact energized outputs | 0 |
| Diameter sensor | - mm |
| Height of sensor | 40 mm |
| Length of sensor | 40 mm |
| Max. output current at protected output | 200 mA |
| Rated control supply voltage at AC 50 Hz | - V |
| Rated control supply voltage at AC 60 Hz | - V |
| Supply voltage | 12 - 48 V |
| Rated control supply voltage at DC | 12 - 48 V |
| Cascadable | No |
| Suitable for safety functions | No |
| With monitoring function downstream switching devices | No |
| Compression-resistant | No |
