Pressure switch XMLB 20 bar, adjustable scale 2 thresholds, 1 C/O
Part Number:
2500153924
MPN:
XMLB020A2S12
- Product Type:
- Pressure
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details

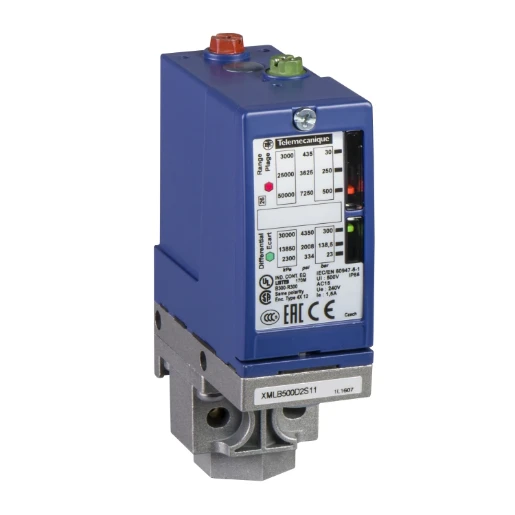

Pressure switch XMLB 20 bar, adjustable scale 2 thresholds, 1 C/O. range of product: OsiSense XM - product or component type: electromechanical pressure sensor - device short name: XMLB - pressure sensor size: 20 bar - controlled fluid: air (0...70 °C), fresh water (0...70 °C), hydraulic oil (0...70 °C) - AWG gauge: AWG 20...AWG 14 - product specific application: - - electrical circuit type: control circuit - scale type: adjustable differential - local display: with - adjustable range of switching point on rising pressure: 1.3...20 bar - adjustable range of switching point on falling pressure: 0.3...18.4 bar - possible differential maximum at high setting: 11 bar - maximum permissible accidental pressure: 45 bar - destruction pressure: 90 bar - pressure actuator: diaphragm - materials in contact with fluid: brass, nitrile, zinc alloy - enclosure material: zinc alloy - [In] rated current: 0.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1, 1.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-1, 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-1.
- · Pressure rating: 20 bar
- · Fluid connection type: G 1/4 (female) conforming to ISO 228
- · Electrical connection: Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
- · AWG gauge: AWG 20...AWG 14
- · Cable entry: Cable gland 7…13 mm
- · Pressure switch type of operation: Regulation between 2 thresholds
- · Electrical circuit type: Control circuit
- · Scale type: Adjustable differential
- · Adjustable range of switching point on rising pressure: 1.3…20 bar
- · Possible differential maximum at high setting: 11 bar
Technical Specifications
Technical Specifications
Pressure switch | |
| Type of electric connection | Screw connection |
|---|---|
| Degree of protection (IP rating) | IP66 |
| Diameter | - mm |
| Rated operation power at AC-3, 400 V | - kW |
| Switching capacity at AC-3, 240 V | - kA |
| Rated operation current Ie at AC-1, 400 V | - A |
| Rated operation current Ie at AC-3, 400 V | - A |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Pressure-switching differential | 9.4 bar |
| Initial value measuring range pressure | - Pa |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 0 |
| Max. test pressure | 45 bar |
| Bursting pressure | 90 bar |
| End value measuring range pressure | - Pa |
| Number of auxiliary contacts as change-over contact | 1 |
| Max. operating pressure | 20000 hPa |
| Height | 113 mm |
| Depth | 75 mm |
|---|---|
| Width | 35 mm |
| Rated voltage Ue at AC 50 Hz | 120 - 240 V |
| End setting | 300 - 18400 hPa |
| Switch off pressure | 0.3 - 18.4 bar |
| Rated voltage Ue at DC | 250 - 250 V |
| Engaging pressure | 1.3 - 20 bar |
| Initial setting | 1300 - 20000 hPa |
| Rated voltage Ue at AC 60 Hz | 120 - 240 V |
| Medium temperature | 0 - 70 °C |
| Adjustable current range | - A |
| Display | No |
| With manual on/off switch | No |
| Suitable as guard | Yes |
| Suitable as 2-point controller | Yes |
| Suitable as limiter | Yes |
| With hand operation | No |
| Electronic version | No |
| Explosion-proof | No |
