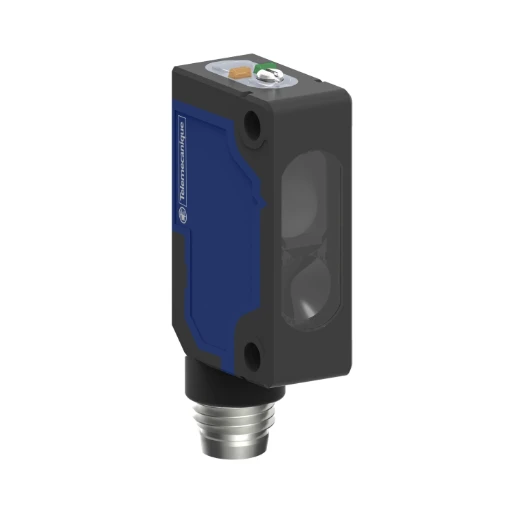

Photoelectric Sensors Xu Miniature Polarised Smax=8 M Pnp Connector M8
Part Number:
2501555302
MPN:
XUM9APXBM8
- Product Type:
- Photoelectric Sensors
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
This product is part of the XUM range, an offer of miniature photoelectric sensors. This reference correspond to a polarised reflex sensor with adjustable sensitivity, Light ON/Dark ON (NC/NO) function and a PNP solid-state digital output. It features a 4-pin M8 connector. It is a photoelectric cell with a rated supply voltage of 12V to 24VDC and protection against reverse polarity. This miniature and robust sensor allows quick installation in compact spaces of even harsh industrial applications. It provides nominal sensing distance of 6.7m and maximum sensing distance of 8m. It is an IP65 and IP67 rated product, operating in an ambiant air temperature from -30°C to +55°C (-22°F to +131°F). This sensor is suitable for harsh industrial environments. This photocell features a compact and robust housing. The casing is made of plastic (PBT) and the lens is made of PMMA. Its dimensions are 10.8mm (width) x 19.5mm (depth) x 31.5mm (height) and weighs 0.010kg. It is ideal for material handling, packaging, labelling and assembly industries. This product is certified by CE, cULus and UKCA. Dedicated reflectors, fixing brackets and cabling acessories can be purchased separately. 2 potentiometers help to configure the sensing distance and the output functions. The XUM range is for non-contact sensing up to 30metres of objects of any shape and any type.
- · Detection system Polarised reflex
- · Material Plastic
- · Supply circuit type DC
- · Wiring technique 3-wire
Technical Specifications
Technical Specifications
Retroreflective photoelectric sensor | |
| Laser protection class | None |
|---|---|
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Material of optical surface | Plastic |
| Type of light | Polarized red light |
| Setting procedure | Manual adjustment |
| Housing material | Plastic |
| Sensing mode | Light-/dark switching |
| Degree of protection (IP rating) | IP67 |
| Type of switch function | Programmable/configurable |
| Construction type housing | Special construction |
| Voltage type | DC |
| Operation agent-safety class | Safety class 0 |
| Type of electric connection | Connector M8 |
| Type of switching output | PNP |
| Height of sensor | 42.3 mm |
| Width sensor | 10.8 mm |
| Reaction time | 0.5 ms |
| Transmission range of the safety field | 6.7 m |
| Length of sensor | 19.5 mm |
| Rated switching distance | 6700 mm |
| Wavelength of the sensor | - nm |
| Max. switching distance | 8000 mm |
| Switching voltage of OSSD at state "high" | - V |
| Diameter sensor | - mm |
| Min. reflector distance | 50 mm |
| Number of protected contact energized outputs | 0 |
| Light dot | - mm² |
| Max. output current at protected output | 100 mA |
| Number of protected semiconductor outputs | 1 |
| Number of semiconductor outputs with signalling function | 1 |
|---|---|
| Maximum output current | 100 mA |
| Number of contact energized outputs with signalling function | 0 |
| Switching frequency | 1000 Hz |
| Ambient temperature | -30 - 55 °C |
| Rated control supply voltage at AC 60 Hz | - V |
| Rated control supply voltage at AC 50 Hz | - V |
| Rated control supply voltage at DC | 12 - 24 V |
| With communication interface RS-422 | No |
| With communication interface SSI | No |
| With communication interface PROFIBUS | No |
| With communication interface INTERBUS | No |
| With communication interface DeviceNet | No |
| With communication interface CANOpen | No |
| With other analogue output | No |
| With communication interface AS-Interface | No |
| With communication interface analogue | No |
| Pre failure notice | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Analogue output 0 mA ... 20 mA | No |
| With communication interface RS-232 | No |
| Analogue output 0 V ... 10 V | No |
| With communication interface RS-485 | No |
| With communication interface Ethernet | No |
| With communication interface SSD | No |
| With restart blockage | No |
| With monitoring function downstream switching devices | No |
| With time function | No |
| Suitable for safety functions | No |
