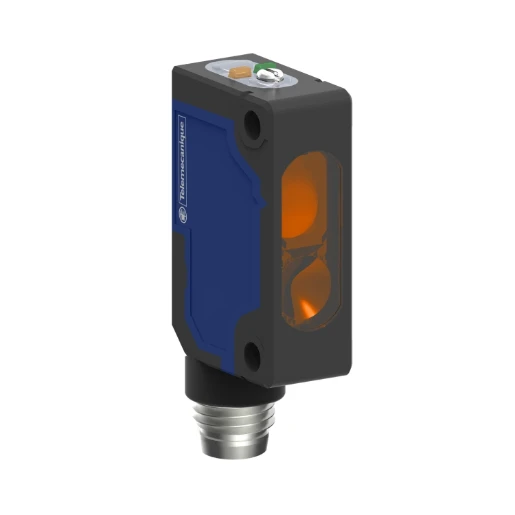

Photoelectric Sensors Xu Miniature Diffuse Medium Smax=1.1 M Pnp Connector M8
Part Number:
2501555298
MPN:
XUM6APXBM8
- Product Type:
- Photoelectric Sensors
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This product is part of the XUM range, an offer of miniature photoelectric sensors. This reference correspond to a diffuse system sensor with adjustable sensitivity, Light ON/Dark ON (NC/NO) function and a PNP solid-state digital output. It features a 4-pin M8 connector. It is a photoelectric cell with a rated supply voltage of 12V to 24VDC and protection against reverse polarity. This miniature and robust sensor allows quick installation in compact spaces of even harsh industrial applications. It provides operating sensing distance of 0.8m and maximum sensing distance of 1.1m. It is an IP65 and IP67 rated product, operating in an ambiant air temperature from -30°C to +55°C (-22°F to +131°F). This sensor is suitable for harsh industrial environments. This photocell features a compact and robust housing. The casing is made of plastic (PBT) and the lens is made of PMMA. Its dimensions are 10.8mm (width) x 19.5mm (depth) x 31.5mm (height) and weighs 0.010kg. It is ideal for material handling, packaging, labelling and assembly industries. This product is certified by CE, cULus and UKCA. Dedicated reflectors, fixing brackets and cabling acessories can be purchased separately. 2 potentiometers help to configure the sensing distance and the output functions. The XUM range is for non-contact sensing up to 30metres of objects of any shape and any type.
- · Material Plastic
- · Supply circuit type DC
- · Wiring technique 3-wire
- · Electrical connection Male connector M8, 4 pins
Technical Specifications
Technical Specifications
Diffuse reflective photoelectric sensor | |
| Laser protection class | None |
|---|---|
| Housing material | Plastic |
| Setting procedure | Manual adjustment |
| Sensing mode | Light-/dark switching |
| Construction type housing | Special construction |
| Degree of protection (IP rating) | IP67 |
| Voltage type | DC |
| Type of switch function | Programmable/configurable |
| Operation agent-safety class | Safety class 0 |
| Type of safety acc. IEC 61496-1 | 1 |
| Type of switching output | PNP/PNP |
| Type of electric connection | Connector M8 |
| Diameter sensor | - mm |
| Type of light | Laser diode, red light |
| Wavelength of the sensor | - nm |
| Max. switching distance | 1100 mm |
| Number of semiconductor outputs with signalling function | 1 |
| Number of contact energized outputs with signalling function | 0 |
| Switching frequency | 1000 Hz |
| Maximum output current | 20 mA |
| Light dot | - mm² |
| Reaction time | 0.5 ms |
| Min. reflector distance | - mm |
| Transmission range of the safety field | 0.8 m |
| Number of protected semiconductor outputs | 0 |
| Number of protected contact energized outputs | 0 |
| Max. output current at protected output | 50 mA |
| Height of sensor | 34 mm |
| Length of sensor | 20 mm |
| AWG-number | - |
| Switching voltage of OSSD at state "high" | - V |
|---|---|
| Width sensor | 10 mm |
| Ambient temperature | -30 - 55 °C |
| Rated control supply voltage at AC 60 Hz | - V |
| Rated control supply voltage at AC 50 Hz | - V |
| Rated control supply voltage at DC | 12 - 24 V |
| Operating distance | 800 - 800 mm |
| Analogue output -10 V ... +10 V | No |
| With communication interface analogue | No |
| With time function | No |
| With communication interface SSD | No |
| With communication interface Ethernet | No |
| With monitoring function downstream switching devices | No |
| With restart blockage | No |
| Suitable for safety functions | No |
| Analogue output 0 mA ... 20 mA | No |
| With other analogue output | No |
| Pre failure notice | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| With communication interface RS-422 | No |
| With communication interface SSI | No |
| With communication interface PROFIBUS | No |
| With communication interface INTERBUS | No |
| With communication interface DeviceNet | No |
| With communication interface CANOpen | No |
| With communication interface AS-Interface | No |
