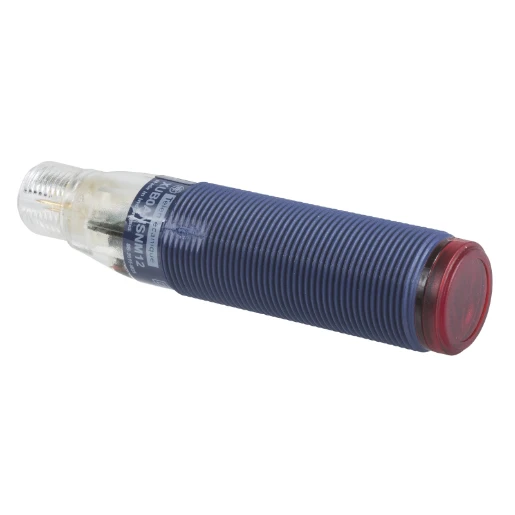

Photo-electric sensor, XUB, polarised, Sn 2m, 12..24VDC, M12
Part Number:
2500212982
MPN:
XUB9APANM12
- Product Type:
- Photoelectric Sensors
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
This design 18 single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
- · This design 18 single mode (polarised reflex system) photo-electric sensor has a PBT case.
- · It has a supply voltage of 12V to 24V DC.
- · This mono-mode cylindrical photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts.
- · It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability.
- · 1 LED display allows to identify status of the sensor.
Technical Specifications
Technical Specifications
Retroreflective photoelectric sensor | |
| Type of light | Polarized red light |
|---|---|
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Laser protection class | None |
| Housing material | Plastic |
| Material of optical surface | Plastic |
| Construction type housing | Cylinder, screw-thread |
| Sensing mode | Dark switching |
| Type of safety acc. IEC 61496-1 | 1 |
| Type of electric connection | Connector M12 |
| Type of switching output | PNP/PNP |
| Operation agent-safety class | Safety class 0 |
| Type of switch function | Normally open contact (NO) |
| Degree of protection (IP rating) | IP65 |
| Voltage type | AC/DC |
| Number of protected contact energized outputs | 0 |
| Number of contact energized outputs with signalling function | 0 |
| Maximum output current | 100 mA |
| Switching frequency | 500 Hz |
| Rated switching distance | 2000 mm |
| Max. switching distance | 3000 mm |
| Length of sensor | 62 mm |
| Switching voltage of OSSD at state "high" | - V |
| Max. output current at protected output | 100 mA |
| Height of sensor | - mm |
| Min. reflector distance | 1000 mm |
| Wavelength of the sensor | - nm |
| Diameter sensor | 18 mm |
| Light dot | - mm² |
| Reaction time | 1 ms |
| Width sensor | - mm |
|---|---|
| Transmission range of the safety field | - m |
| Number of protected semiconductor outputs | 1 |
| Number of semiconductor outputs with signalling function | 1 |
| Ambient temperature | -25 - 55 °C |
| Rated control supply voltage at AC 50 Hz | - V |
| Rated control supply voltage at AC 60 Hz | - V |
| Rated control supply voltage at DC | 12 - 24 V |
| With time function | No |
| With monitoring function downstream switching devices | No |
| Suitable for safety functions | No |
| Pre failure notice | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| With communication interface INTERBUS | No |
| With communication interface PROFIBUS | No |
| With communication interface RS-422 | No |
| With communication interface SSD | No |
| With communication interface SSI | No |
| With restart blockage | No |
| With other analogue output | No |
| With communication interface analogue | No |
| With communication interface AS-Interface | No |
| With communication interface Ethernet | No |
| With communication interface CANOpen | No |
| With communication interface DeviceNet | No |
| With communication interface RS-485 | No |
| With communication interface RS-232 | No |
