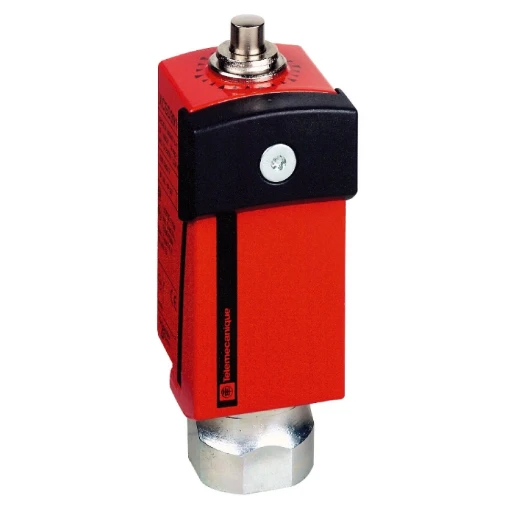

Safety Limit Switch Telemecanique Safety Switches Xcs Metal Steel Plunger 2Nc+1 No 1 Entry Tapped M20 X 1.5
Part Number:
2500256938
MPN:
XCSD3910P20
- Product Type:
- Limit Switches
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
This XCSD Compact Safety Limit Switch has a metal end plunger, a Zamak body and head and a M20 cable gland entry. It has 1 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
- · Head type Plunger head
- · Protection technology Plastic protective cover, secured by 5-lobe socket head safety screw
- · Type of operator Metal end plunger
- · Cable entry 1 entry tapped for M20 x 1.5
Technical Specifications
Technical Specifications
End switch | |
| Type of interface for safety communication | None |
|---|---|
| Interface type | None |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Switching function | Quick-break switch |
| Construction type housing | Cuboid |
| Housing material | Metal |
| Type of control element | Plunger |
| Type of electric connection | Cable entry metrical |
| Degree of protection (IP rating) | IP67K |
| Width sensor | 34 mm |
| Rated operation current Ie at AC-15, 230 V | 1.5 A |
| Rated operation current Ie at AC-15, 24 V | - A |
| Diameter sensor | - mm |
| Rated operation current Ie at DC-13, 125 V | - A |
| Rated operation current Ie at DC-13, 24 V | - A |
|---|---|
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at DC-13, 230 V | 0.1 A |
| Number of safety auxiliary contacts | 0 |
| Rated operation current Ie at AC-15, 125 V | - A |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 2 |
| Height of sensor | 89 mm |
| Length of sensor | 35 mm |
| Ambient temperature during operating | -25 - 70 °C |
| Switching function latching | No |
| With status indication | No |
| Forced opening | No |
| Suitable for safety functions | Yes |
| Output electronic | No |
