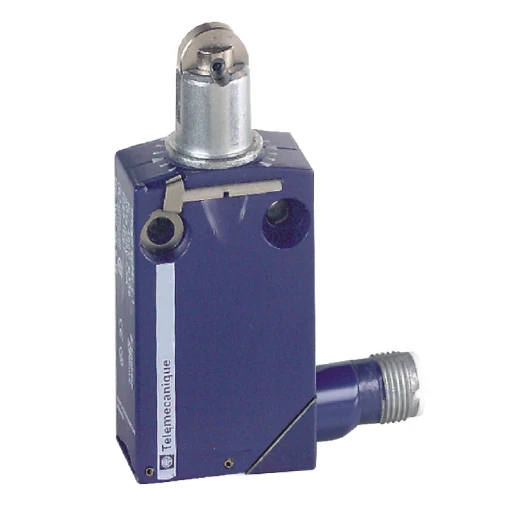

OsiSense XCMD Snap Action Limit Switch Steel Roller Plunger 1NC+1NO M12
Part Number:
2500658648
MPN:
XCMD2102C12
- Product Type:
- Limit Switches
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
- · Galvanic separation of circuits
- · Models suitable for low power switching, combined with good electrical durability
- · Very good short-circuit withstand in coordination with appropriate fuses
- · Total immunity to electromagnetic interference
- · High rated operational voltage
- · N/C contacts with positive opening operation
- · High resistance to the different ambient conditions encountered in industry
- · High repeat accuracy, up to 0.01 mm on the tripping points
- · Simple visible operation
Technical Specifications
Technical Specifications
End switch | |
| Interface type | None |
|---|---|
| Type of interface for safety communication | None |
| Degree of protection (IP rating) | IP66/IP67 |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Type of control element | Roller cam |
| Type of electric connection | Connector M12 |
| Switching function | Quick-break switch |
| Alignment of the control element | Roller cam straight |
| Housing material | Metal |
| Diameter sensor | - mm |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.22 A |
| Length of sensor | 16 mm |
| Number of contacts as normally open contact | 1 |
| Number of safety auxiliary contacts | 0 |
|---|---|
| Number of contacts as normally closed contact | 1 |
| Rated operation current Ie at AC-15, 24 V | - A |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 125 V | - A |
| Rated operation current Ie at DC-13, 24 V | - A |
| Rated operation current Ie at DC-13, 125 V | - A |
| Width sensor | 30 mm |
| Height of sensor | 50 mm |
| Ambient temperature during operating | -25 - 70 °C |
| Suitable for safety functions | No |
| With status indication | No |
| Switching function latching | No |
| Output electronic | No |
| Forced opening | Yes |
