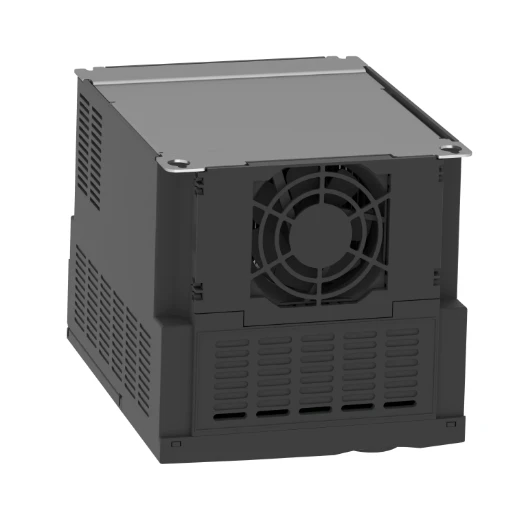

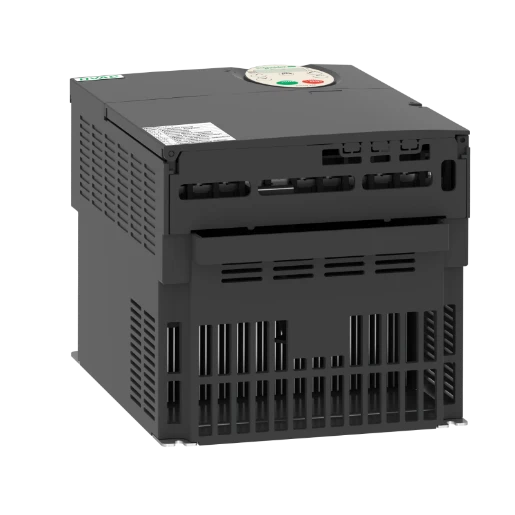

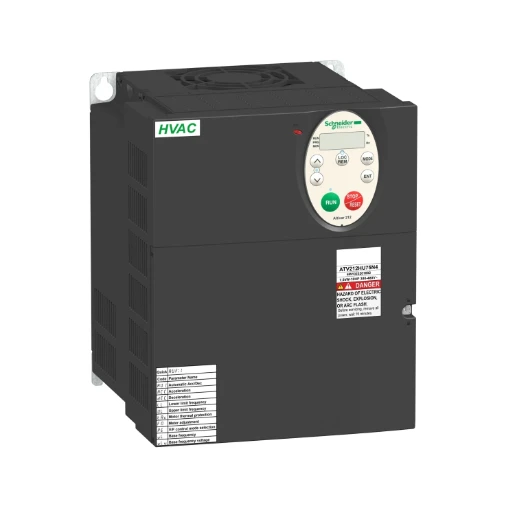

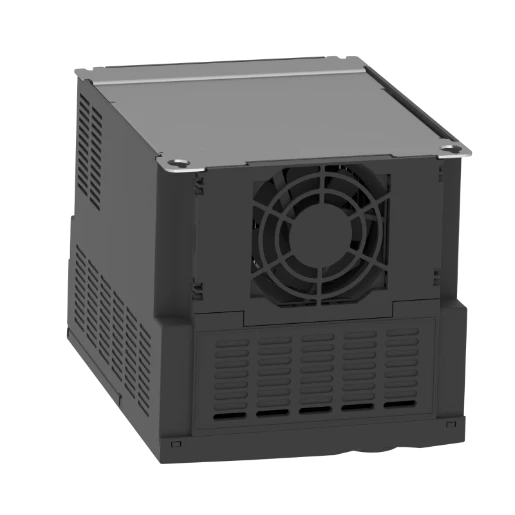

Drive Variable Speed 3Ph Atv212 EMC 11Kw 480V IP21
Part Number:
2500653629
MPN:
ATV212HD11N4
- Product Type:
- Variable Speed Drives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
This product is no longer available to purchase.
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
Schneider Electric ATV212HD11N4 Altivar 212 11kW variable speed drive for pumps and fans in HV AC incorporates flux vector control without sensor, standard asynchronous motor control profile. APOGEE FLN, BACnet, LonWorks, METASYS N2 and Modbus communication port protocol. 40 to 50°C with derating factor operating temperature. Conforms to 2 IEC 61800-5-1 pollution degree..
- · This Altivar 212 variable speed drive can feed 3-phase asynchronous motors.
- · Its protection index is IP21 and it has a built-in EMC filter.
- · It works at a rated power up to 11kW / 15hp and a rated voltage from 380V to 480V AC.
- · Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system.
- · Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics.
- · For Use With Motor: ATV212 Asynchronous
- · It weighs 6.45kg and its dimensions are, 180mm wide, 232mm high, 170mm deep.
- · IP Rating: IP20 & IP41 (Upper Part), IP21
- · It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping.
- · It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified.
Technical Specifications
Technical Specifications
Frequency converter =< 1 kV | |
| Supporting protocol for INTERBUS-Safety | No |
|---|---|
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for MODBUS | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| With PC connection | Yes |
| Supporting protocol for SERCOS | No |
| With optical interface | No |
| 4-quadrant operation possible | No |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | Yes |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Number of HW-interfaces RS-422 | 0 |
|---|---|
| Mains frequency | 50/60 Hz |
| Number of phases output | 3 |
| Type of converter | I converter |
| Number of phases input | 3 |
| Number of HW-interfaces parallel | 0 |
| Width | 180 mm |
| Number of HW-interfaces RS-485 | 1 |
| Number of interfaces PROFINET | 0 |
| Max. output frequency | 200 Hz |
| Relative symmetric net voltage tolerance | 0 % |
| Depth | 170 mm |
| Number of HW-interfaces industrial Ethernet | 0 |
| Max. output at quadratic load at rated output voltage | 0 kW |
| Degree of protection (IP) | IP21 |
| Number of HW-interfaces USB | 0 |
| Nominal output current I2N | 22.5 A |
| Height | 232 mm |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces other | 0 |
| Max. output at linear load at rated output voltage | 11 kW |
| Relative symmetric net frequency tolerance | 5 % |
| Max. output voltage | 480 V |
| Mains voltage | 380 - 480 V |
| With control unit | Yes |
| Supporting protocol for LON | Yes |
