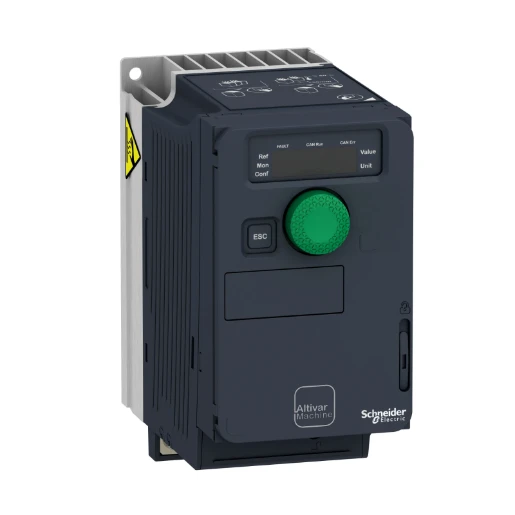

Altivar 1 Phase 0.37kW Variable Speed Drive 200 - 240V Compact
Part Number:
2500893223
MPN:
ATV320U04M2C
- Product Type:
- Variable Speed Drives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
Schneider 1 Phase compact synchronous/asynchronous motors variable speed drive built specifically for complex machines. This starter is assembled with a heat sink included as well as an integrated bypass function. The display on this soft starter features 1 green LED (signalling CANopen run) and 2 red LEDs (1 signalling CANopen error, 1 signalling drive fault).
- · This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors.
- · Its compact form factor allows vertical stacking of drives inside machine frames.
- · It works at a rated power up to 0.37kW / 0.5hp and a rated voltage from 200V to 240V AC.
- · Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling.
- · It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors.
- · Vibration resistance: 1gn
- · Shock resistance: 15gn
- · Supply frequency: 50 - 60Hz
- · Ambient operating temperature: -10°C to 50°C
- · IP20 Degree of protection
Technical Specifications
Technical Specifications
Frequency converter =< 1 kV | |
| Width | 72.00 mm |
|---|---|
| Height | 143.00 mm |
| Depth | 138.00 mm |
| Number of analogue outputs | 1.00 |
| Number of analogue inputs | 3.00 |
| Number of HW-interfaces RS-232 | 0.00 |
| Number of HW-interfaces serial TTY | 0.00 |
| Number of HW-interfaces RS-422 | 0.00 |
| Number of HW-interfaces parallel | 0.00 |
| Number of HW-interfaces USB | 0.00 |
| Number of HW-interfaces other | 1.00 |
| Number of HW-interfaces RS-485 | 1.00 |
| Number of digital outputs | 1.00 |
| Number of digital inputs | 6.00 |
| Number of HW-interfaces industrial Ethernet | 0.00 |
| Max. output at quadratic load at rated output voltage | 0.37 kW |
| Number of HW-interfaces PROFINET | 0.00 |
| Max. output at linear load at rated output voltage | 0.37 kW |
| Relative symmetric net voltage tolerance | 10.00 % |
| Max. output voltage | 240.00 V |
| Relative symmetric net frequency tolerance | 5.00 % |
| Max. output frequency | 599.00 Hz |
| Nominal output current I2N | 3.30 A |
| Mains voltage | 200.00 - 240.00 V |
| With control unit | Yes |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for CAN | Yes |
|---|---|
| Supporting protocol for LON | No |
| Supporting protocol for PROFIBUS | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for ASI | No |
| Supporting protocol for MODBUS | Yes |
| Supporting protocol for KNX | No |
| With PC connection | Yes |
| Integrated breaking resistance | Yes |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | No |
| 4-quadrant operation possible | Yes |
| Supporting protocol for BACnet | No |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for DeviceNet | Yes |
| With optical interface | No |
