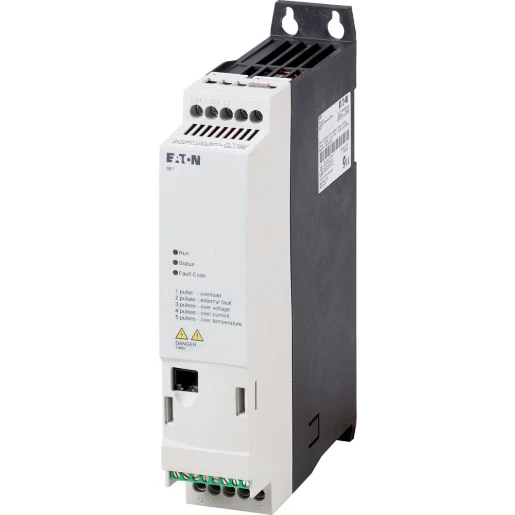

400V AC 2.1A 3 Phase PowerXL DE1 Variable Speed Starter
Part Number:
2500808298
MPN:
DE1-342D1FN-N20N
- Product Type:
- Variable Speed Drives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Moeller series PowerXL DE1 was designed for customers who have basic applications but still require variable frequency and advanced motor protection. The PowerXL DE1 allows customers to simplify their design and reduce installation and commissioning time while introducing an innovative solution to their system.
- · Fit & forget design makes this style of starter perfect for less complicated installations
- · Available in power rating varying from 0.25kW to 7.5kW, with both single & three phase options available
- · Utilises SmartWire-DT technology, making installation even simpler to other compatible products
- · Fitted with a radio interference suppression filter
Technical Specifications
Technical Specifications
Frequency converter =< 1 kV | |
| Mains frequency | 50/60 Hz |
|---|---|
| Number of phases output | 3 |
| Degree of protection (IP rating) | IP20 |
| Number of phases input | 3 |
| Type of converter | U converter |
| Depth | 169 mm |
| Width | 45 mm |
| Height | 230 mm |
| Nominal output current I2N | 2.1 A |
| Max. output frequency | 300 Hz |
| Max. output at quadratic load at rated output voltage | 0.75 kW |
| Max. output at linear load at rated output voltage | 0.75 kW |
| Relative symmetric net voltage tolerance | 10 % |
| Relative symmetric net frequency tolerance | 10 % |
| Max. output voltage | 500 V |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of digital inputs | 4 |
| Number of digital outputs | 0 |
| Power consumption | 28 W |
| Number of analogue outputs | 0 |
| Number of analogue inputs | 1 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Mains voltage | 380 - 480 V |
| With control unit | No |
|---|---|
| Supporting protocol for LON | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for ASI | No |
| Supporting protocol for MODBUS | Yes |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| With optical interface | No |
| Supporting protocol for CAN | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for DeviceNet Safety | No |
| With PC connection | Yes |
| 4-quadrant operation possible | No |
| Integrated breaking resistance | No |
| Application in industrial area permitted | Yes |
| Application in domestic- and commercial area permitted | Yes |
| Supporting protocol for EtherNet/IP | Yes |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for BACnet | No |
