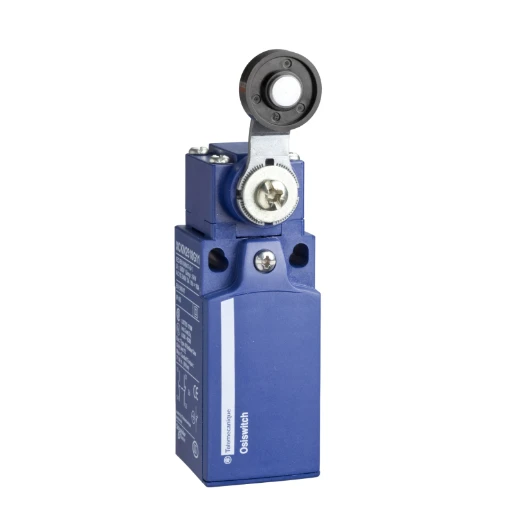

Limit Switch 1NO + 1NC SA CE ISO20 Thermoplastic Roller Lever
Part Number:
2500255800
MPN:
XCKN2118P20
- Product Type:
- Motor Starters
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
LS 1NO1NC SA CE ISO20
- · Snap action with positive action mechanism
- · Robustness and reliability
- · For easy product selection, installation and maintenance
- · Variable composition design
- · Wide range of operating temperature from -25°C to 70°C
Technical Specifications
Technical Specifications
End switch | |
| Explosion safety category for dust | None |
|---|---|
| Explosion safety category for gas | None |
| Interface type | None |
| Type of interface for safety communication | None |
| Construction type housing | Cuboid |
| Housing material | Plastic |
| Type of electric connection | Cable entry metrical |
| Type of control element | Roller lever |
| Degree of protection (IP rating) | IP65 |
| Width sensor | 30 mm |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Rated operation current Ie at DC-13, 230 V | 0.1 A |
| Number of safety auxiliary contacts | 0 |
| Length of sensor | 44.5 mm |
| Diameter sensor | - mm |
| Height of sensor | 108 mm |
|---|---|
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Rated operation current Ie at AC-15, 125 V | - A |
| Rated operation current Ie at AC-15, 24 V | - A |
| Rated operation current Ie at DC-13, 125 V | - A |
| Rated operation current Ie at DC-13, 24 V | - A |
| Number of contacts as normally closed contact | 1 |
| Ambient temperature during operating | -25 - 70 °C |
| Suitable for safety functions | No |
| With status indication | No |
| Forced opening | Yes |
| Switching function latching | No |
| Output electronic | No |
