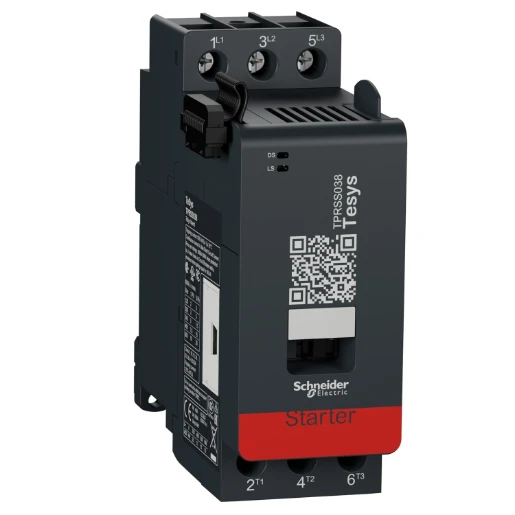

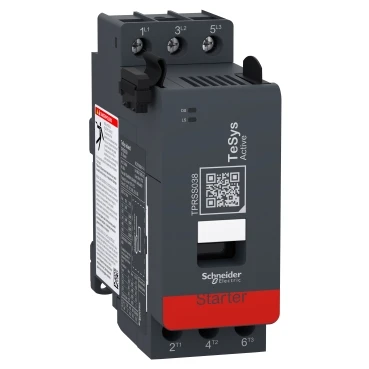

Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp
Part Number:
2501393224
MPN:
TPRSS038
- Product Type:
- Motor Starters
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys island direct SIL starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
- · TeSys island direct SIL starter, 3 poles, 38A/690V.
- · Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V.
- · In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508.
- · It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection.
- · Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - power module, motor switch | |
| Height | 121 mm |
|---|---|
| Width | 45 mm |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of inputs | 1 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces USB | 0 |
| Depth | 115 mm |
| Number of HW-interfaces Wireless | 0 |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces other | 2 |
| Number of motor outlets | 1 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Rated operation current of the motor | 0.76 - 38 A |
| Supply voltage AC 50 Hz | - - - V |
| Supply voltage AC 60 Hz | - - - V |
| Supply voltage DC | 20.4 - 28.8 V |
| Permitted voltage at output | 0 - 690 V |
| Permitted voltage at input | 0 - 690 V |
| Supporting protocol for ASI | No |
| With optical interface | No |
| Short-circuit protection, outputs available | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for MODBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for LON | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for PROFIBUS | No |
| Suitable for safety functions | Yes |
| Supporting protocol for AS-Interface Safety at Work | No |
|---|---|
| Supporting protocol for DeviceNet Safety | No |
| IO link master | No |
| Radio standard WLAN 802.11 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for INTERBUS-Safety | No |
| Radio standard Bluetooth | No |
| Supporting protocol for SERCOS | No |
| System accessory | Yes |
| With brake output | No |
| With motor current parameter setting | No |
| With thermal motor protection | Yes |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| Appendant operation agent (Ex ib) | No |
| Front built-in possible | No |
| Appendant operation agent (Ex ia) | No |
| Rail mounting possible | Yes |
| Fieldbus connection over separate bus coupler possible | Yes |
| Wall mounting/direct mounting | No |
| Rack-assembly possible | No |
