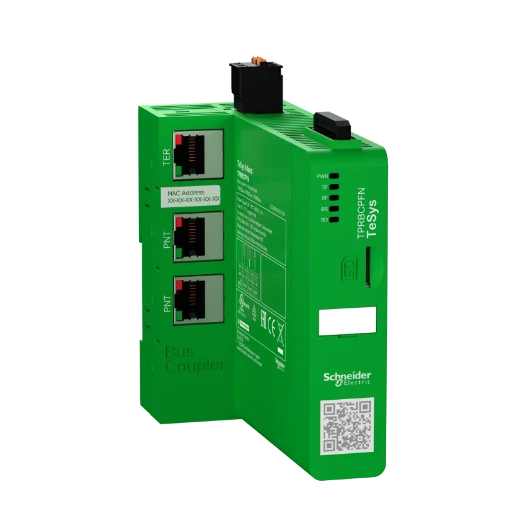

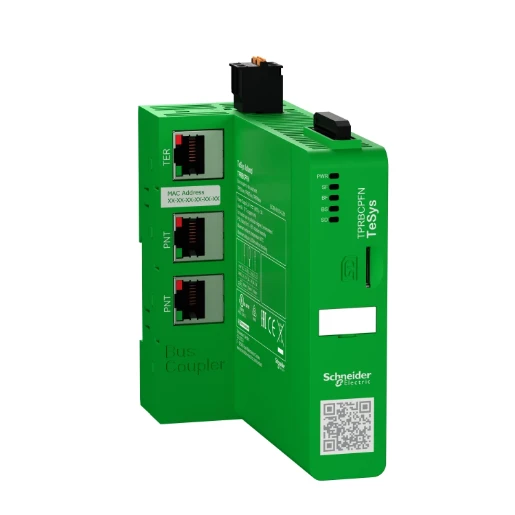

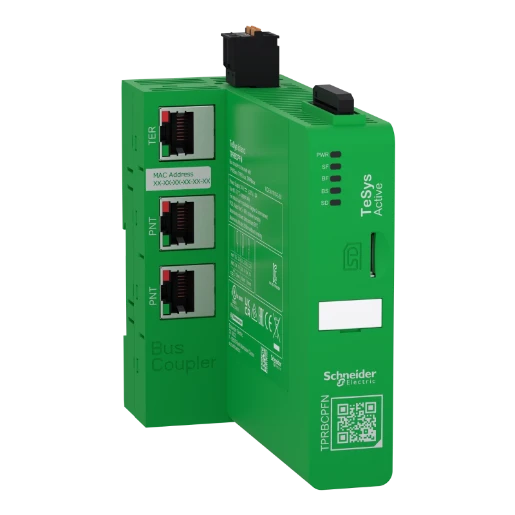

Bus coupler, TeSys island, PROFINET
Part Number:
2501393210
MPN:
TPRBCPFN
- Product Type:
- Motor Starters
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).
- · TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO.
- · It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert.
- · For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded.
- · To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island.
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - communication module | |
| Depth | 114.00 mm |
|---|---|
| Width | 50.00 mm |
| Height | 118.00 mm |
| Supply voltage AC 50 Hz | - - - V |
| Supporting protocol for TCP/IP | No |
| Supply voltage AC 60 Hz | - - - V |
| Supply voltage DC | 20.40 - 28.80 V |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for LON | No |
| Appendant operation agent (Ex ia) | No |
| Suitable for safety functions | No |
| With potential separation | Yes |
| Fieldbus connection over separate bus coupler possible | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Rail mounting possible | Yes |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for KNX | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for Data-Highway | No |
|---|---|
| Supporting protocol for ASI | No |
| Supporting protocol for MODBUS | No |
| System accessory | Yes |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | Yes |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for Foundation Fieldbus | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Front built-in possible | No |
| Supporting protocol for INTERBUS-Safety | No |
| Radio standard WLAN 802.11 | No |
| Radio standard Bluetooth | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| IO link master | No |
| Radio standard UMTS | No |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFIsafe | No |
