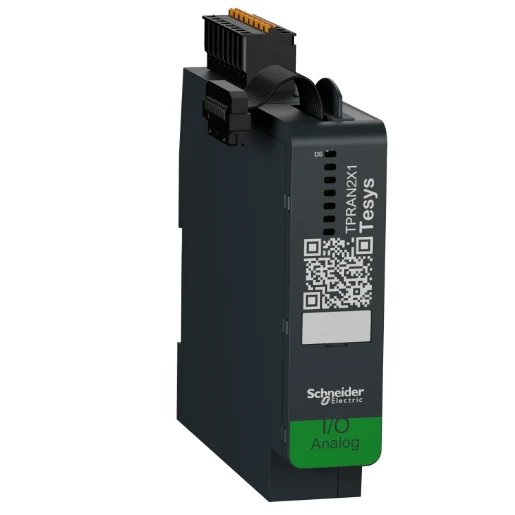

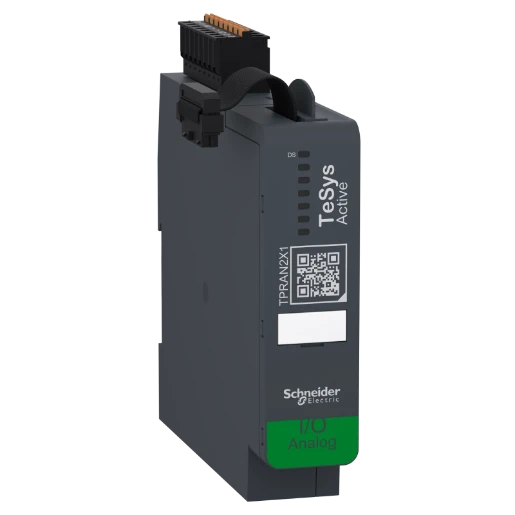

Analog IO module, TeSys island, 2 inputs, 1 output
Part Number:
2501393213
MPN:
TPRAN2X1
- Product Type:
- Motor Starters
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
- · TeSys island analog IO module, 2 analog inputs, 1 analog output.
- · Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars).
- · Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples).
- · One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA).
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - analogue I/O module | |
| Height | 118 mm |
|---|---|
| Depth | 114 mm |
| Width | 25 mm |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of analogue outputs | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of analogue inputs | 2 |
| Number of HW-interfaces other | 2 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Resolution of the analogue inputs | 16 Bit |
| Resolution of the analogue outputs | 12 Bit |
| Supply voltage AC 50 Hz | - - - V |
| Supply voltage AC 60 Hz | - - - V |
| Supply voltage DC | 20.4 - 28.8 V |
| Input, current | Yes |
| Input, resistor | No |
| Input, voltage | Yes |
| Supporting protocol for LON | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for CAN | No |
| Suitable for safety functions | No |
| Appendant operation agent (Ex ib) | No |
| Front built-in possible | No |
| Wall mounting/direct mounting | No |
| Rack-assembly possible | No |
| Supporting protocol for other bus systems | Yes |
|---|---|
| Supporting protocol for SUCONET | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for KNX | No |
| Supporting protocol for MODBUS | No |
| IO link master | No |
| Radio standard WLAN 802.11 | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Radio standard Bluetooth | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for SERCOS | No |
| Input, resistance thermometer | Yes |
| Output, current | Yes |
| Input signal, configurable | Yes |
| Input, thermocouple | Yes |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Output signal configurable | Yes |
| Output, voltage | Yes |
| System accessory | Yes |
| Radio standard UMTS | No |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Supporting protocol for SafetyBUS p | No |
| Appendant operation agent (Ex ia) | No |
| Fieldbus connection over separate bus coupler possible | Yes |
| Analogue outputs configurable | Yes |
| Rail mounting possible | Yes |
| Analogue inputs configurable | Yes |
