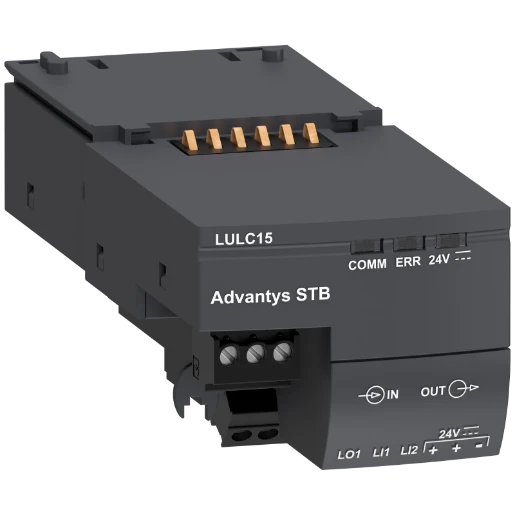

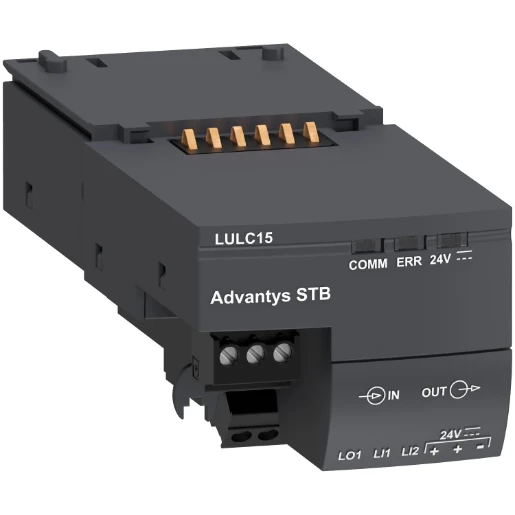

Advantys STB communication module, for TeSys U, 24 V DC
Part Number:
2500381386
MPN:
LULC15
- Product Type:
- Motor Starters
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- · TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit.
- · It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line,
- · a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC.
- · On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base.
- · It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR).
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - communication module | |
| Width | 45.00 mm |
|---|---|
| Height | 45.00 mm |
| Supply voltage DC | 24.00 - 24.00 V |
| Depth | 110.00 mm |
| Supply voltage AC 50 Hz | - - - V |
| Front built-in possible | Yes |
| Supply voltage AC 60 Hz | - - - V |
| Rack-assembly possible | No |
| IO link master | No |
| Wall mounting/direct mounting | No |
| Radio standard UMTS | No |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Radio standard WLAN 802.11 | No |
| Radio standard Bluetooth | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
|---|---|
| Supporting protocol for PROFINET IO | No |
| Rail mounting possible | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| System accessory | Yes |
| With potential separation | Yes |
| Fieldbus connection over separate bus coupler possible | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for ASI | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for MODBUS | No |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | Yes |
