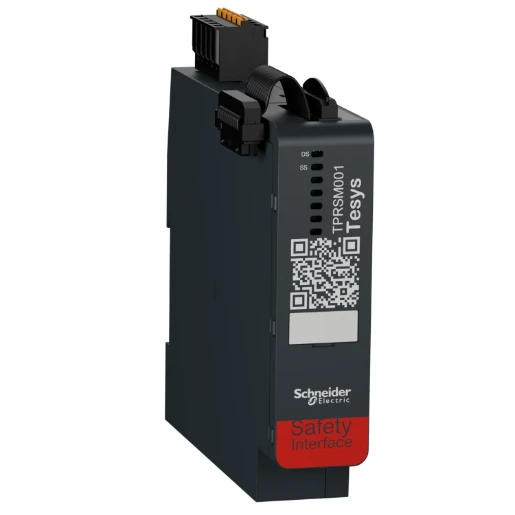

SIL interface module, TeSys island
Part Number:
2501393218
MPN:
TPRSM001
- Product Type:
- Safety Relays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys island SIL interface module, 2 inputs, 1 output. Connected to a TPRBC bus coupler, it allows integration into safety related systems conforming to ISO 13849-1. It is used in connection to one or several SIL motor starter TPRSS. Two isolated switching inputs with common point, 0-24V DC. One relay type output, 1NO, instantaneous opening, potential free. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
- · TeSys island SIL interface module, 2 inputs, 1 output.
- · Connected to a TPRBC bus coupler, it allows integration into safety related systems conforming to ISO 13849-1.
- · It is used in connection to one or several SIL motor starter TPRSS.
- · Two isolated switching inputs with common point, 0-24V DC.
- · One relay type output, 1NO, instantaneous opening, potential free.
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - function-/technology module | |
| Width | 25.00 mm |
|---|---|
| Depth | 114.00 mm |
| Height | 118.00 mm |
| Number of HW-interfaces RS-422 | 0.00 |
| Number of HW-interfaces serial TTY | 0.00 |
| Number of HW-interfaces RS-485 | 0.00 |
| Number of HW-interfaces industrial Ethernet | 0.00 |
| Number of HW-interfaces RS-232 | 0.00 |
| Number of HW-interfaces Wireless | 0.00 |
| Number of HW-interfaces parallel | 0.00 |
| Number of HW-interfaces PROFINET | 0.00 |
| Number of HW-interfaces other | 2.00 |
| Number of HW-interfaces USB | 0.00 |
| Number of functions | 1.00 |
| Supply voltage AC 50 Hz | - - - V |
| Supply voltage AC 60 Hz | - - - V |
| Supply voltage DC | 20.40 - 28.80 V |
| Frequency measurement | No |
| Suitable for safety functions | Yes |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for LON | No |
| Supporting protocol for KNX | No |
| Supporting protocol for ASI | No |
| Supporting protocol for CAN | No |
| System accessory | Yes |
| Suitable for multi-axis positioning | No |
| Single-axis controller possible | No |
| Suitable for multi-axis control | No |
| Suitable for flying saw | No |
| Supporting protocol for SERCOS | No |
| Suitable for cam controller | No |
| Suitable for path controller | No |
| Suitable for flux measurement | No |
| Flux controller possible | No |
| Suitable for detection absolute value | No |
| Suitable for incremental data detection | No |
| Suitable for CNC | No |
| Function electronic positioning available | No |
| Suitable for SSI | No |
| Suitable for NC | No |
| Suitable for pressure control | No |
| Suitable for welding control | No |
| Suitable for weighting | No |
|---|---|
| Suitable for counting | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Radio standard Bluetooth | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| With optical interface | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for MODBUS | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Front built-in possible | No |
| Appendant operation agent (Ex ib) | No |
| Fieldbus connection over separate bus coupler possible | Yes |
| Appendant operation agent (Ex ia) | No |
| Single-axis positioning possible | No |
| Function block automatic reset | No |
| Function block contactless working protection installation | No |
| Function block restart blockage | No |
| Function block emergency stop | No |
| Function block affirm pushbutton | No |
| Function block 2-hand switching | No |
| Rail mounting possible | Yes |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Radio standard UMTS | No |
| Radio standard GPRS | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GSM | No |
| Suitable for temperature control | No |
| Contactor control function block | Yes |
| Function block operating mode selection | No |
| Function block access control | No |
