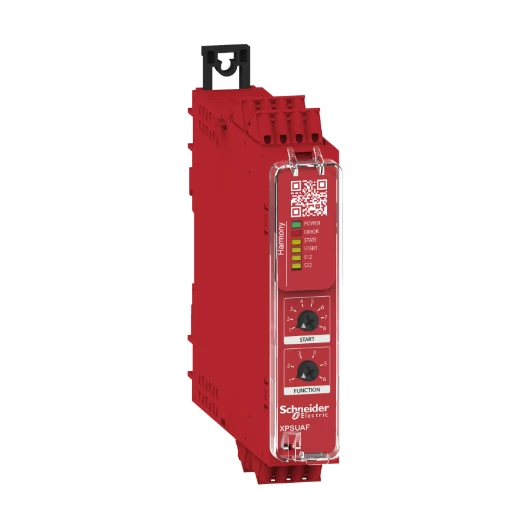

Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring

Part Number:

2501537463

MPN:

XPSUAF13AC

To view pricing, availability, and special offering, click the button below and log in.

Product Details

Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring

· This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or Safety light curtain.
· The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block.
· This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors.
· This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid state diagnostic output with complete status information.
· The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508.
· This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height).
· This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height).
· This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging.
· This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking.
· Harmony safety relays are compatible with Modicon logic controllers.

Device for monitoring of safety-related circuits
Height	100.00 mm
Width	22.50 mm
Number of outputs, safety related, delayed, with contact	0.00
Number of outputs, safety related, delayed, semiconductors	0.00
Number of outputs, signalling function, delayed, with contact	0.00
Number of outputs, signalling function, undelayed, with contact	0.00
Number of outputs, signalling function, delayed, semiconductors	0.00
Number of outputs, signalling function, undelayed, semiconductors	0.00
Number of outputs, safety related, undelayed, semiconductors	0.00
Number of outputs, safety related, undelayed, with contact	3.00
Depth	120.00 mm
Release-delay	0.00 - 0.00 s
With feedback circuit	Yes


Suitable for monitoring of position switches	Yes
Suitable for monitoring of valves	No
Suitable for monitoring of tactile sensors	No
Suitable for monitoring of optoelectronic protection equipment	Yes
Suitable for monitoring of emergency-stop circuits	Yes
Suitable for monitoring of proximity switches	Yes
Suitable for monitoring of magnetic switches	Yes
With detachable clamps	Yes
With approval according to UL	Yes
With approval for BG BIA	No
With muting function	No
With start input	Yes
Rail mounting possible	Yes
