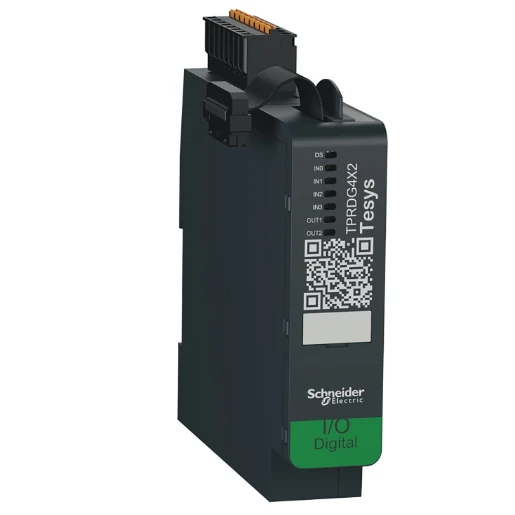

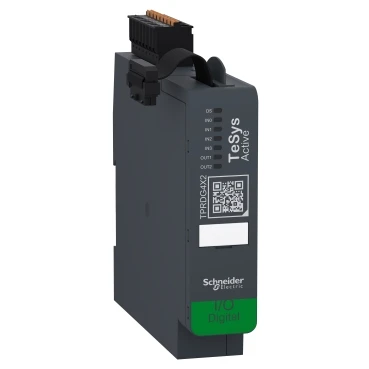

Digital IO module, TeSys island, 4 inputs, 2 outputs
Part Number:
2501393212
MPN:
TPRDG4X2
- Product Type:
- Safety Relays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
- · TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC.
- · Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars).
- · It can be used to control external power switching devices when associated to a TPRPM power module.
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - digital I/O module | |
| Width | 25 mm |
|---|---|
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 2 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces Wireless | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces PROFINET | 0 |
| Input current at signal 1 | 7 mA |
| Number of HW-interfaces RS-232 | 0 |
| Number of digital inputs | 4 |
| Number of digital outputs | 2 |
| Output current | 0.5 A |
| Number of HW-interfaces industrial Ethernet | 0 |
| Depth | 114 mm |
| Height | 118 mm |
| Time delay at signal change | 5 - 5 ms |
| Supply voltage AC 50 Hz | - - - V |
| Supply voltage AC 60 Hz | - - - V |
| Supply voltage DC | 20.4 - 28.8 V |
| Permitted voltage at output | 0 - 28.8 V |
| Permitted voltage at input | 0 - 28.8 V |
| Supporting protocol for LON | No |
| Suitable for safety functions | No |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for PROFIBUS | No |
| System accessory | Yes |
| Short-circuit protection, outputs available | No |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for DeviceNet | No |
|---|---|
| Radio standard WLAN 802.11 | No |
| Radio standard Bluetooth | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for ASI | No |
| Supporting protocol for CAN | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for MODBUS | No |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Appendant operation agent (Ex ia) | No |
| Front built-in possible | No |
| Appendant operation agent (Ex ib) | No |
| Fieldbus connection over separate bus coupler possible | Yes |
| Rail mounting possible | Yes |
| Radio standard UMTS | No |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for PROFINET CBA | No |
| Digital inputs configurable | Yes |
| Digital outputs configurable | Yes |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
