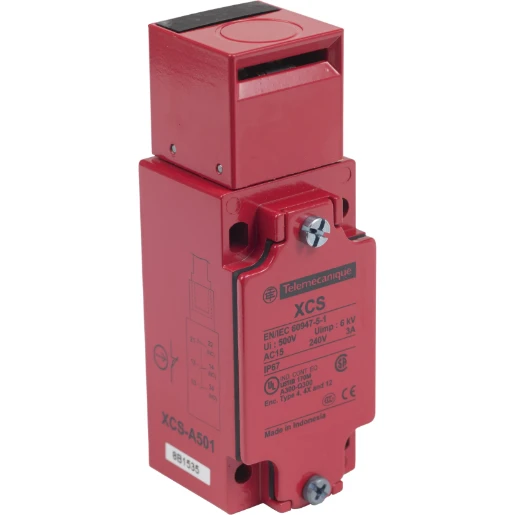

Metal Safety Switch Xcsa 1 NC + 2 NO Slow Break 1 Entry Tapped Pg 13
Part Number:
2500154213
MPN:
XCSA501
- Product Type:
- Guard Switches Mechanical
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing flexible installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a -door-open machine stop- control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators.
- · This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body.
- · This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing flexible installation.
- · Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions.
- · When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508.
- · It simply ensures a "door-open machine stop" control on your machine, with maximal reliability.
Technical Specifications
Technical Specifications
Position switch with separate actuator | |
| Explosion safety category for gas | None |
|---|---|
| Interface type | None |
| Type of interface for safety communication | None |
| Type of switching contact | Slow-action switch |
| Explosion safety category for dust | None |
| Type of electric connection | Cable entry PG |
| Housing material | Metal |
| Width sensor | 40 mm |
| Degree of protection (IP rating) | IP67K |
| Number of safety auxiliary contacts | 0 |
| Height of sensor | 114 mm |
| Rated operation current Ie at DC-13, 230 V | 0.27 A |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Length of sensor | 44 mm |
|---|---|
| Rated operation current Ie at AC-15, 24 V | - A |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Rated operation current Ie at DC-13, 125 V | 0.55 A |
| Rated operation current Ie at DC-13, 24 V | - A |
| Rated operation current Ie at AC-15, 125 V | 6 A |
| Number of contacts as normally open contact | 2 |
| Ambient temperature during operating | -25 - 70 °C |
| With status indication | No |
| Suitable for safety functions | Yes |
| Forced opening | Yes |
