Tele Selector Switch
Part Number:
2501141287
MPN:
XB4BD41
- Product Type:
- Indicator Lights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
DOP
Technical Data Sheet
Product Details
Product Details

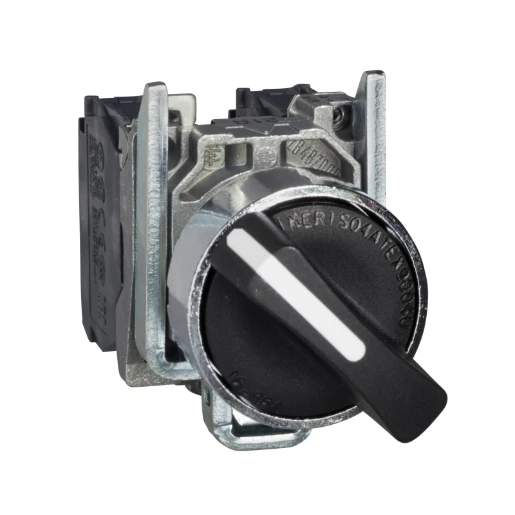

This Harmony XB4 modular black selector switch has 2 positions, operates with a spring-return-to-left mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- · This Harmony XB4 modular black selector switch has 2 positions, operates with a spring-return-to-left mechanism.
- · It has a metal bezel.
- · This selector switch provides a versatile interface for controlling your machines.
- · It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections.
- · It provides an effective manner to set your machine in various operating modes.
- · 2 positions 90
- · Contacts type and composition 1 NO
- · Contact operation Slow-break
- · Connections - terminals Screw clamp terminals, <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm without cable end conforming to EN/IEC 60947-1
- · Positive opening Without
Technical Specifications
Technical Specifications
Selector switch, complete | |
| Number of contacts as normally closed contact | 0.00 |
|---|---|
| Width opening | - mm |
| Number of switch positions | 2.00 |
| Height opening | - mm |
| Hole diameter | 22.50 mm |
| Number of contacts as change-over contact | 0.00 |
| Number of contacts as normally open contact | 1.00 |
|---|---|
| Spring-return | Yes |
| Suitable for illumination | No |
| Light source included | No |
| Switching function latching | Yes |
| With front ring | Yes |
