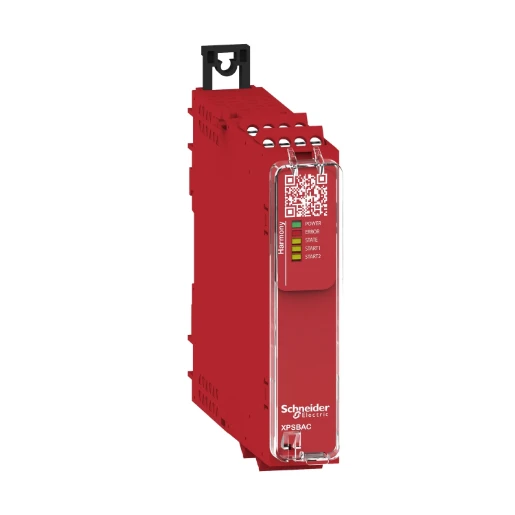

Estop or guard ,Harmony XPS, connected to supply terminals 24 V AC/DC , no inputs, screw
Part Number:
2501537456
MPN:
XPSBAC14AP
- Product Type:
- Emergency Stop Buttons
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
XPSBAC safety modules are used for monitoring Emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1 and also meet the safety requirements for the electrical monitoring of switches in protective devices conforming to standard EN/ISO 14119. They provide protection for both the machine operator and the machine by immediately stopping the dangerous movement on receipt of a stop instruction from the operator, or on detection of a fault in the safety circuit itself. XPSBAC module have 4 NO safety outputs and a serial or parallel hardwire configurable NC output for signalling to the PLC. The safety functions are fixed. To aid diagnostics, XPSBAC modules have a serial or parallel hardwire configurable NC output to provide information on the status of the zero speed detection circuit. 5 LEDs on the front face provide information on the monitoring circuit status.
- · Start inputs Automatic, manual & monitored start
- · Safety inputs ˗
- · Control outputs 1
- · Safety outputs 4 NO
- · Diagnostic outputs 2 NC
- · Connection type Removable terminal blocks
- · Terminals 16
- · Module width 22.5 mm/0.886 in.
- · Maximum achievable safety level
- · PL e/Category 4 conforming to ISO 13849-1
Technical Specifications
Technical Specifications
Device for monitoring of safety-related circuits | |
| Stop category acc. to IEC 60204 | 0 |
|---|---|
| Model | Basic device |
| Performance level acc. to EN ISO 13849-1 | Level e |
| Type of safety acc. IEC 61496-1 | 4 |
| Evaluation inputs | 2-channel |
| SIL according to IEC 61508 | 3 |
| Height | 100 mm |
| Type of electric connection | Screw connection |
| Depth | 120 mm |
| Width | 22.5 mm |
| Number of outputs, signalling function, delayed, semiconductors | 0 |
| Number of outputs, signalling function, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, semiconductors | 0 |
| Number of outputs, safety related, undelayed, with contact | 5 |
| Number of outputs, safety related, undelayed, semiconductors | 0 |
| Number of outputs, safety related, delayed, with contact | 0 |
| Number of outputs, signalling function, undelayed, with contact | 0 |
| Number of outputs, safety related, delayed, semiconductors | 0 |
|---|---|
| Release-delay | - s |
| With approval according to UL | No |
| With feedback circuit | Yes |
| With start input | Yes |
| Rail mounting possible | Yes |
| With approval for TÜV | Yes |
| With approval for BG BIA | No |
| With muting function | No |
| Suitable for monitoring of position switches | Yes |
| Suitable for monitoring of valves | No |
| Suitable for monitoring of tactile sensors | No |
| Suitable for monitoring of optoelectronic protection equipment | No |
| Suitable for monitoring of emergency-stop circuits | Yes |
| Suitable for monitoring of magnetic switches | No |
| With detachable clamps | Yes |
| Suitable for monitoring of proximity switches | No |
