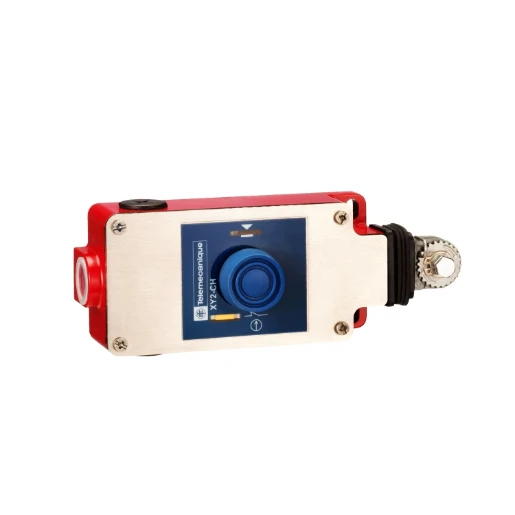

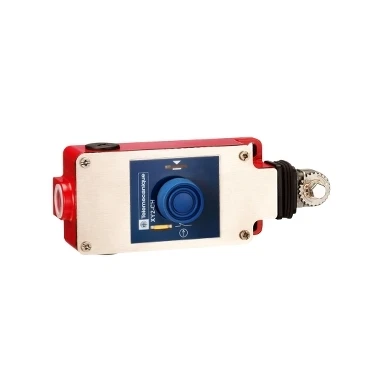

E-Stop Rope Pull Switch Xy2Ch 1NC+1NO Booted Pushbutton
Part Number:
2500152168
MPN:
XY2CH13250H29
- Product Type:
- Emergency Stop Buttons
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
This XY2CH Emergency Stop Rope pull Switch is designed with a right hand side or a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area. It operates with a maximum rope length of 30 meters. It has a Zamak body with a booted pushbutton reset, Chloroprene bellows, no pilot light, and 1 normally open and 1 normally closed slow break contacts. Its B10D reliability data is 4 000 000. This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP65 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
- · This XY2CH Emergency Stop Rope pull Switch is designed with a right hand side or a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area.
- · It operates with a maximum rope length of 30 meters.
- · Normal State Configuration: 1 Nc + 1 No
- · It has a Zamak body with a booted pushbutton reset, Chloroprene bellows, no pilot light, and 1 normally open and 1 normally closed slow break contacts.
- · Its B10D reliability data is 4 000 000.
- · This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc.
- · Its IP65 degree of protection makes it ideal for heavy duty use in harsh conditions.
Technical Specifications
Technical Specifications
Emergency stop pull cord switch | |
| Colour | Red |
|---|---|
| Degree of protection (IP rating) | IP65/IP67 |
| Number of contacts as normally closed contact | 1 |
| Number of actuation directions | - |
| Max. length of pull cord | 30 m |
| Number of contacts as change-over contact | 0 |
|---|---|
| Number of contacts as normally open contact | 1 |
| Ambient temperature | -25 - 70 °C |
| With tension indication | No |
