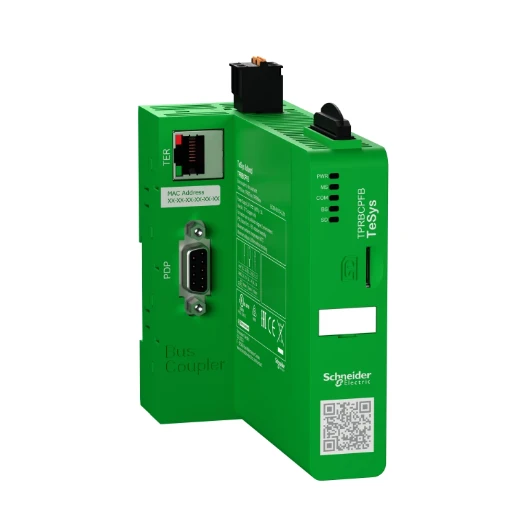

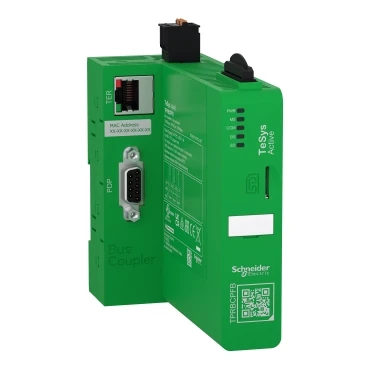

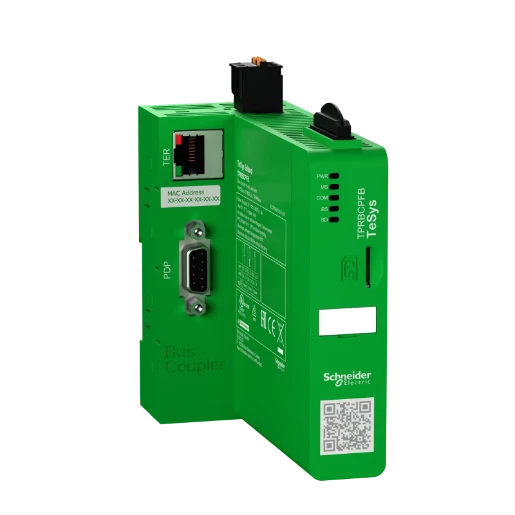

Bus Coupler Tesys Island 24Vdc 3A Profibus Double Pole
Part Number:
2501393211
MPN:
TPRBCPFB
- Product Type:
- Programmable Logic Controller (PLC)
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFIBUS DP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides one D-Sub port for PROFIBUS DP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).
- · Full integration with SoMove/MachineExpert for the programming of the island
- · One single 24V DC power supply for the complete island
- · Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
- · All adjustments and setting are digitized, no mechanical dials or dip switches
Technical Specifications
Technical Specifications
Fieldbus, decentr. periphery - communication module | |
| Explosion safety category for gas | None |
|---|---|
| Explosion safety category for dust | None |
| Performance level acc. to EN ISO 13849-1 | None |
| SIL according to IEC 61508 | None |
| Voltage type of supply voltage | DC |
| Degree of protection (IP rating) | IP20 |
| Width | 50 mm |
| Depth | 114 mm |
| Height | 118 mm |
| Supply voltage DC | 20.4 - 28.8 V |
| Supply voltage AC 50 Hz | - V |
| Supply voltage AC 60 Hz | - V |
| Supporting protocol for LON | No |
| Suitable for safety functions | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for MODBUS | No |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for PROFINET IO | No |
| With potential separation | Yes |
| System accessory | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for PROFINET CBA | No |
| Fieldbus connection over separate bus coupler possible | No |
|---|---|
| Rail mounting possible | Yes |
| Supporting protocol for other bus systems | Yes |
| Supporting protocol for SUCONET | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | Yes |
| Rack-assembly possible | No |
| Wall mounting/direct mounting | No |
| Radio standard LTE | No |
| Radio standard UMTS | No |
| Radio standard GSM | No |
| Radio standard GPRS | No |
| IO link master | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| Radio standard eGPRS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Front built-in possible | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for Foundation Fieldbus | No |
