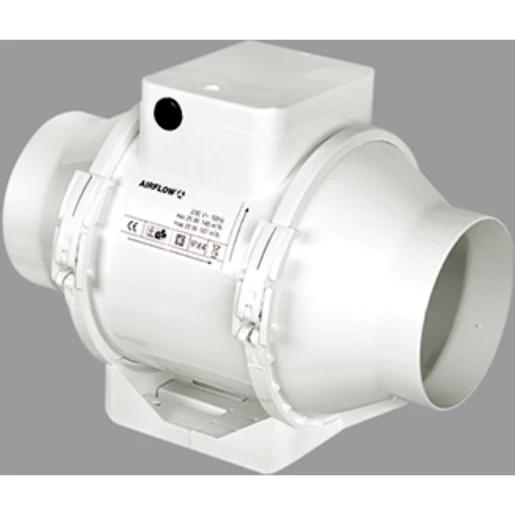

Fan Mixed Flow In-Line 2 Speed + Timer 125mm 5 In
Part Number:
2500280684
MPN:
9041088
- Product Type:
- Domestic Fans
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
Aventa In-Line 125T is a mixed flow fan. Available in high-performance two speed versions. They are less bulky than large in-line centrifugal fans and can be installed in loft spaces or service shafts. This range is specially designed for residential applications requiring remote extraction. It is also supplied with a mounting bracket for quick and easy installation on wooden joists and panels. The inlet/outlets are compatible with flexible and rigid pipe runs up to 3m either side of the fan (6m).The units operate manually from an (optional) three position switch (off/low/high) or with adjustable timer version (2 to 30 minutes). Application: Aventa 125mm fans are suitable for removing damp moist air, odours and airborne pollutants from bathrooms, en-suites, shower rooms, utilities, kitchen and other internal living spaces without windows or natural ventilation.
- · In-line Mixed Flow 125mm Fan, Designed For Ducted Installations
- · High Pressure Low Noise, Two Speed, Timer Version
- · Easy Access To Impeller For Maintenance
- · Two Speed 220/280 m³hr 61/78 l/sec
Technical Specifications
Technical Specifications
Duct fan | |
| Power consumption | 0.023 kW |
|---|---|
| Connection voltage | 230 V |
| Air volume, free flow | 280 m³/h |
| Maximum air temperature | 40 °C |
|---|---|
| 2-speed motor | Yes |
