Timeswitch 7 Day Slimline General Purpose Electronic
Part Number:
2500534330
MPN:
NTT07
- Product Type:
- Time Switches
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details

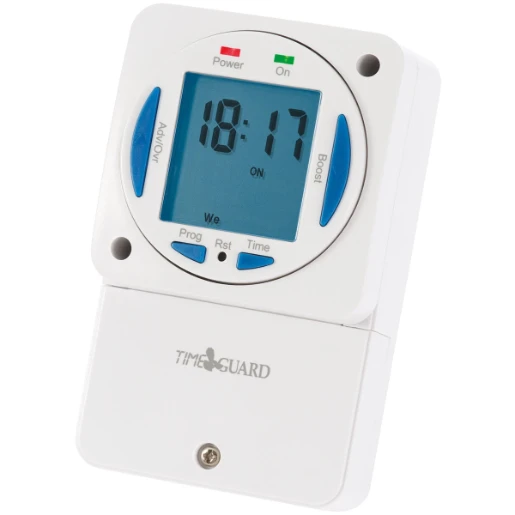

Timeguard Slimline Electronic General Purpose Timeswitch is designed for wall mounting and offers comprehensive 7 day control offering 28 on and 28 off programmes per week with a minimum switching time of one minute. Supplied with Voltage Free Contacts making it suitable for a wider range of switching applications. It has a 720 hour rechargeable memory back up, it can control outputs of up to 16A making it suitable for installation in both new and existing systems as well as general purpose halogen, incandescent, CFL and fluorescent lighting loads. The timer is simple to use with two button programming via a large 'Easy View' screen with blue LED backlighting and LED indicators for ON/OFF.
- · Load rating of 16(4)A
- · 28 ON/28 OFF easy-set programme periods per week
- · Shortest switching time 1 minute
- · Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting
- · Extra large 'Easy View' screen with blue LED backlighting
- · Not suitable for discharge lighting
- · Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
- · Suitable for general use
- · Optional 1 &2 Hour Boost Button automatic Summer/Winter Time Change 720 hours rechargeable memory back-up
- · Voltage Free Contacts
Technical Specifications
Technical Specifications
Programmable time switch | |
| Rated current | 16 A |
|---|---|
| Nominal voltage | 230 V |
| Power reserve | - h |
| Shortest switching interval | 1 min |
| Max. power | - W |
| Recess depth | - mm |
| Number of contacts as normally closed contact | 1 |
| RAL-number (similar) | - |

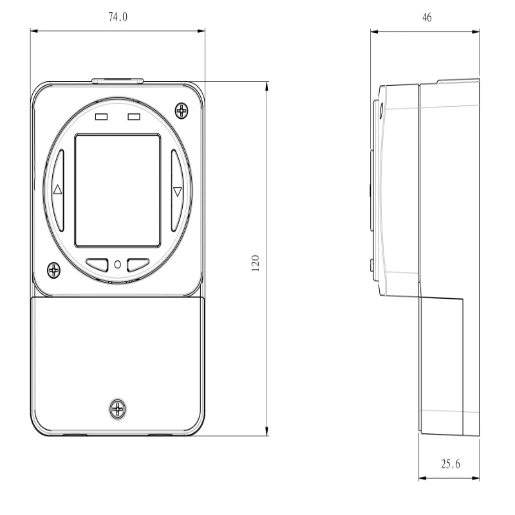

| Depth of device | 46 mm |
| Width of device | 74 mm |
| Number of contacts as change-over contact | - |
| Number of contacts as normally open contact | 1 |
| Height of device | 120 mm |
| Number of module spaces (modular system) | - |
| Minimum depth of back box | - mm |
|---|---|
| Twilight value adjustable | - - - lx |
| Frequency | 50 - 60 Hz |
| Time setting | - - - min |
| Random generator | No |
| Astro/solar program | No |
| Auxiliary input | No |
| With connection for light sensor | No |
| Transparent | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
