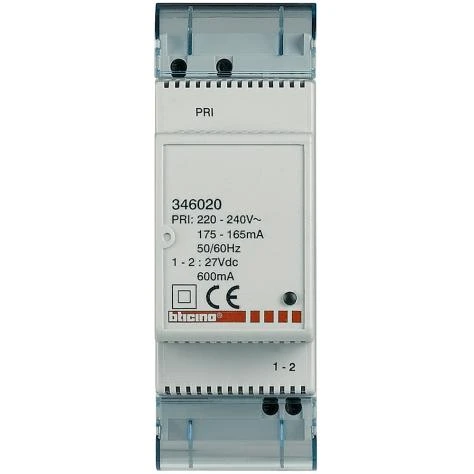

Bticino 2 DIN Additional Power Supply Unit
Part Number:
2500362143
MPN:
346020
- Product Type:
- Door Locks & Accessories
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Bticino 2 DIN Additional Power Supply Unit is a reliable and versatile solution for your door entry system. It provides a 27 Vdc continuous low voltage output with a maximum current of 600 mA, making it ideal for powering a variety of door entry devices, including entrance panels, internal units, and video intercoms.The power supply is 2 DIN in size and features a SELV double insulation safety device, making it a safe and reliable choice for any home or business. It is also protected on the PRI side (with fuse) against overload and short circuit.The Bticino 2 DIN Additional Power Supply Unit is easy to install and use. Simply mount it in a standard 2 DIN housing and connect it to your door entry system. The power supply will automatically provide power to your devices, so you can start using them right away.
- · Additional power supply to be used to supply entrance panels and internal units locally
- · 2 DIN modular enclosure
- · Power supply 230 Vac at 50-60 Hz
- · The output provides 27 Vdc continuous low voltage, with maximum current of 600 mA and it is protected on the PRI side (with fuse) against overload and short circuit
Technical Specifications
Technical Specifications
DC-power supply | |
| Degree of protection (IP rating) | IP30 |
|---|---|
| Voltage type of supply voltage | DC |
| Type of electric connection | Screw connection |
| Width | 33.9 mm |
| Height | 89.7 mm |
| Nominal value output voltage 1 | - V |
| Max. output current 1 | 0.6 A |
| Max. output current 2 | - A |
| Power output | 16.2 W |
| Max. output current 3 | - A |
| Nominal value output voltage 2 | - V |
| Nominal value output current 3 | - A |
| Nominal value output current 2 | - A |
| Nominal value output current 1 | - A |
| Nominal value output voltage 3 | - V |
| Power consumption | 41.8 VA |
| Recess width | - mm |
| Width in number of modular spacings | 2 |
|---|---|
| Depth | 66.2 mm |
| Recess height | - mm |
| 3rd secondary output voltage | - - - V |
| 2nd secondary output voltage | - - - V |
| 1st secondary output voltage | 26.9 - 27.1 V |
| Rated supply voltage at AC 50 Hz | 220 - 240 V |
| Rated supply voltage at AC 60 Hz | 220 - 240 V |
| Rated supply voltage at DC | - - - V |
| Modular version | Yes |
| Rail mounting possible | Yes |
| Suitable for safety functions | No |
| Short-circuit-proof | Yes |
| Output voltage stabilized | Yes |
| Direct mounting possible | No |
| Secondary voltage adjustable | No |
| Stabilized | Yes |
