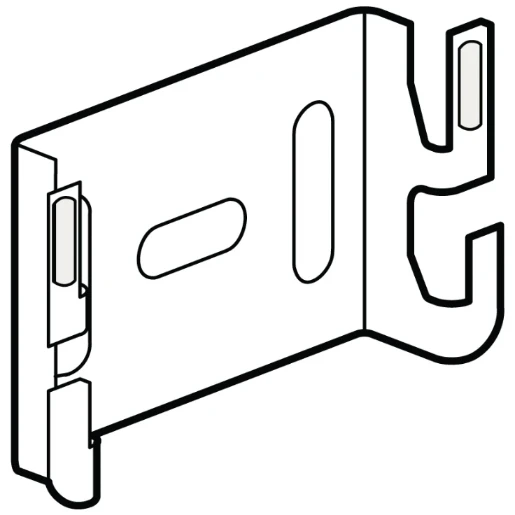

Plate Universal Mounting (Small) 50 x 75mm Pre-Galvanised
Part Number:
2500212910
MPN:
CM586060
- Product Type:
- Wire Basket & Accessories
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Universal mounting bracket made up of a solid steel construction complete with an electrolytically galvanised surface protection finish; suitable for safely mounting cable tray runs and support systems.
- · Universal Mounting Plate (Small)
- · Clamp fastening method
- · Use to ix 50 mm wide steel wire cable tray in 54 mm depth directly onto the wall using the side rail of tray
- · Use for horizontal mounting of steel wire cable tray runs. Incorporates slot and tab design for easy ixing
- · Can also be clipped onto most steel wire cable trays as an ancillary mounting plate
- · Supplied singly without fasteners
Frequently Bought Together
Current Product
Legrand
Plate Universal Mounting (Small) 50 x 75mm Pre-Galvanised
Error while fetching price from ERP!
Legrand
Plate Universal Mounting (Large) 75 x 65mm Pre-Galvanised Steel
Error while fetching price from ERP!
Qty: 1
Legrand
Bracket Support Cradle 45 x 70 x 35mm Pre-Galvanised Steel
Error while fetching price from ERP!
Qty: 1Technical Specifications
Technical Specifications
Cantilever arm | |
| Model | Wall bracket |
|---|---|
| Material | Steel |
| Colour | Zinc |
| Surface protection | Pre-galvanised |
| Safe working load according to IEC 61537 | 1000 N |
| Width | 19 mm |
| RAL number | - |
| Height | 50 mm |
|---|---|
| Suitable for cable management system width | 50 - 100 mm |
| Length | 101 mm |
| Angle | 90 - 90 ° |
| Working temperature | -20 - 120 °C |
| Suitable for circuit integrity | No |
