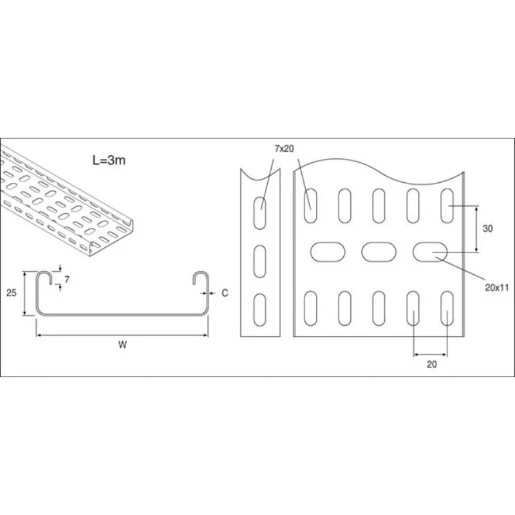

B Cable Tray Medium Duty 75mm Pregalvanised Steel Length 3m
Part Number:
2500074108
MPN:
TUMLT075/10PG
- Product Type:
- Cable Tray & Accessories
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
LG
Min: 1 LG
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Cable tray length made up of a solid steel body complete with a galvanised surface finish designed to enable passage for cables to travel down whilst providing protection and eliminating health and safety risks.
- · 3M length
- · Rim releases suitable for rim night latches
- · Rim releases suitable for rim night latches
- · Suits latches with 12mm maximum throw
- · When cut to smaller lengths on site, connection to the next tray requires a fish plate
- · Adequate ventilation
- · Profile Height: 25 mm
- · Unit Weight: 3.1 kg
Technical Specifications
Technical Specifications
Cable tray | |
| Material | Steel |
|---|---|
| Colour | Zinc |
| Surface protection | Pre-galvanised |
| Model | Coupler not included |
| Width | 75 mm |
| Useful cross section | 1740 mm² |
| Material thickness | 0.8 mm |
| Length | 3000 mm |
|---|---|
| Height | 25 mm |
| With cover (lid) | No |
| Mounting perforation in base | Yes |
| Side wall perforation | Yes |
| Suitable for circuit integrity | Yes |
