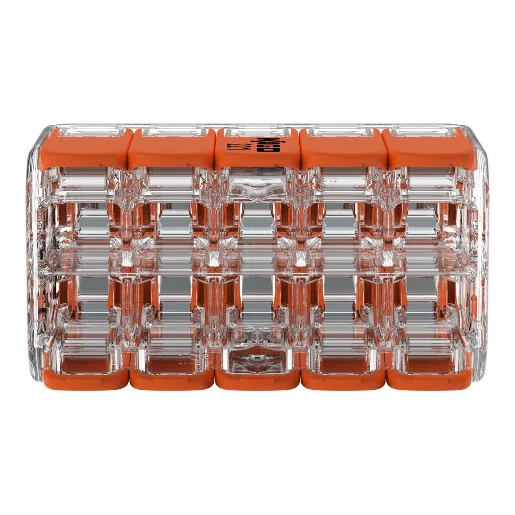

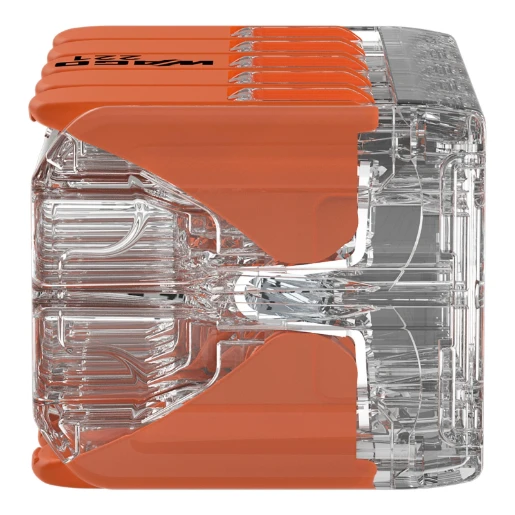

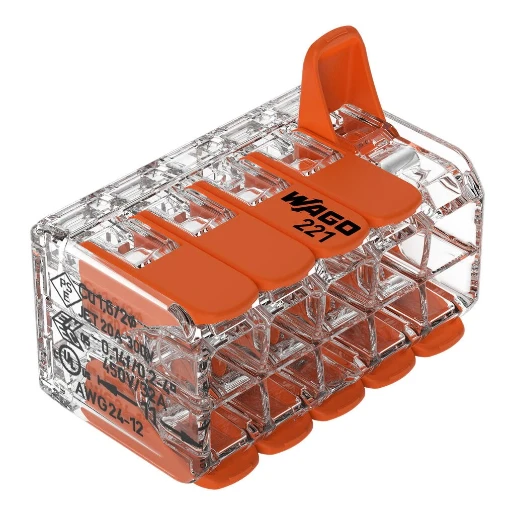

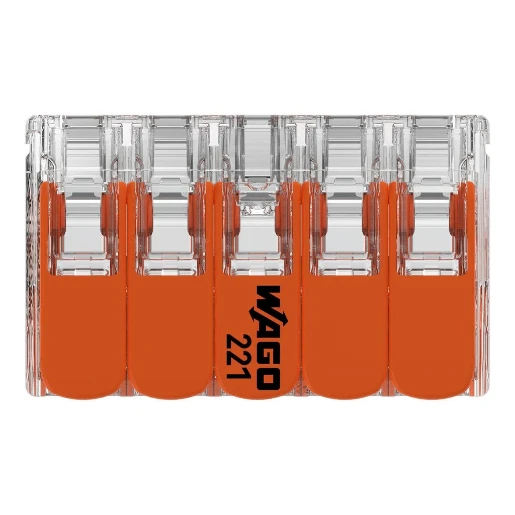

10 Way Compact Splicing Connector With Levers
Part Number:
2503022998
MPN:
221-420
- Product Type:
- Push Fit and Lever Connectors
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 15 EA , Multiple 15 EA
Technical Documents
Technical Documents
Product Details
Product Details

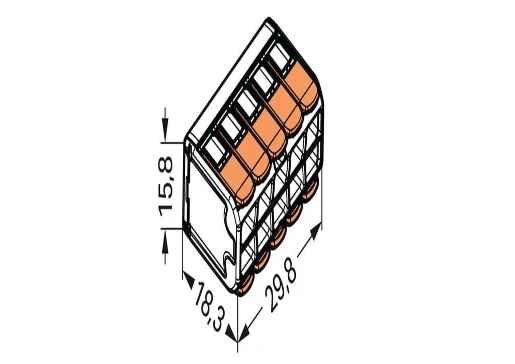

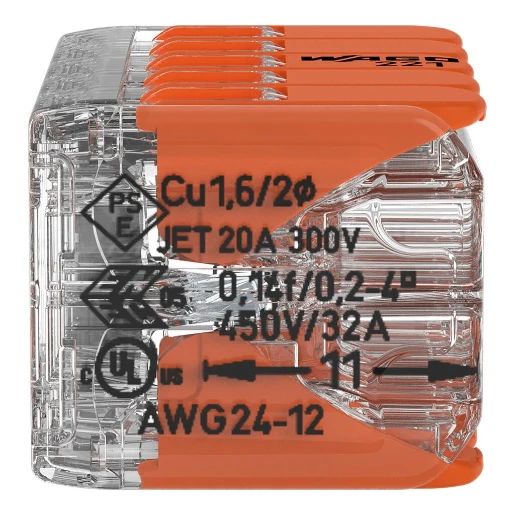

Error-free electrical installations are guaranteed with splicing connector with levers (item number 221-420). From intercom system wiring to electric ovens—connecting various conductor types is quick and easy with WAGO's practical 221 Series splicing connector. This splicing connector has a rated voltage of 450 V and can handle currents up to 32 A, making it ideal for high-load applications. Ensure that the strip lengths are 11 mm when connecting conductors to splicing connector with levers. This product features conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. The dimensions are 29.8 x 15.8 x 18.3 mm (width x height x depth). Splicing connector with levers is suitable for conductor cross sections ranging from 0.2 mm² to 4 mm².
- · Includes an operating lever
- · 32A Rated
- · Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length
- · For all conductor types
- · Up to 50% Reduced Wiring Time
- · Easy Testing - Test Point on the front and rear of the housing
- · Suitable applications e.g. Lighting, Power, HVAC and many more
- · Suitable for use with Wagobox Enclosure
