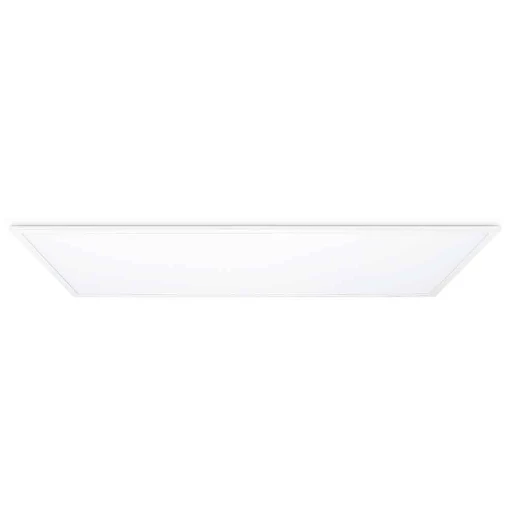

Skytile 1200x600mm 48W IP44 4000K 4800lm Tp(a) UGR <19 LED Panel
Part Number:
2501569542
MPN:
JC080128
- Product Type:
- Backlit LED Panels
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Meets TP(a) requirements and is suitable for all applications, Low glare UGR <19 as standard and is designed to comply with BS EN 12464-1 lighting of workspace. Ultra efficient 100LpcW with DALI/1-10V and DSI Dimming versions available. IP44 protection against dust and moisture. Comes with non-dimmable flicker free driver as standard. Suspension kits and surface mount boxes available, suitable for use with JCEM002 and JCEM002ST emergency remote packs
- · UGR <19 as standard
- · Ultra efficient 100LpcW
- · IP44 protection against dust and moisture
- · Comes with non-dimmable flicker free driver
- · Comes with non-dimmable flicker free driver
- · Suspension kit and surface mount box available
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Width | 595 mm |
|---|---|
| Length | 1195 mm |
| Height/depth | 10.6 mm |
| Number of poles | 2 |
| Power factor | 0.9 |
| Number of lamps | 1 |
| Maximum system power | 48 W |
| Rated life time L70/B50 at 25 °C | 54000 h |
| Nominal voltage | 220 - 240 V |
| Unified Glare Rating (UGR) | 19 |
| Nominal current | 1050 - 1050 mA |
| Colour temperature | 4000 - 4000 K |
| Rated luminous flux according to IEC 62722-2- 1 | 4800 - 4800 lm |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 25 °C |
| With movement sensor | No |
| Suitable for suspended mounting | Yes |
| Light source included | Yes |
| With light sensor | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | Yes |
| Suitable for recessed mounting | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | Yes |
| Dimming trailing edge | No |
|---|---|
| Constant luminous flux control | Yes |
| Suitable for ceiling mounting | Yes |
| IFTTT support available | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | Yes |
| Dimming DALI | No |
| Dimming programmable | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Dimming DMX | No |
| With air slots | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming Zigbee | No |
| Replaceable control gear | Yes |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
