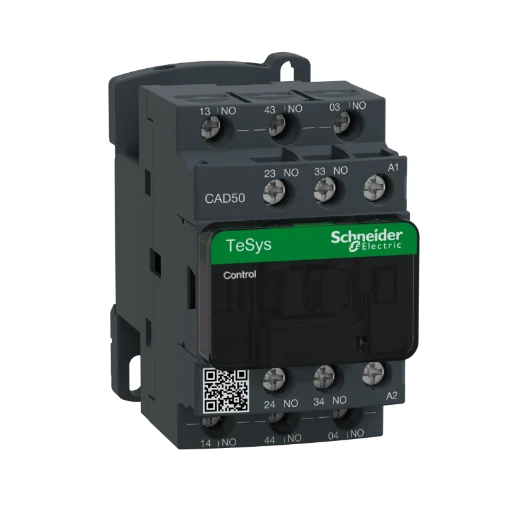

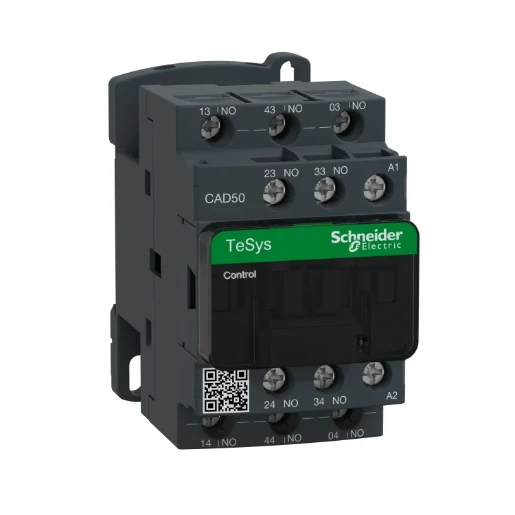

Relay Control Instantaneous 5NO 110V 50/60Hz Scw Clamp Terminal
Part Number:
2500090582
MPN:
CAD50F7
- Product Type:
- Industrial Plug In Relays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
- · TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13.
- · Screw clamp terminals: 1 to 4mm²
- · It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals.
- · For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability.
- · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw.
- · Mechanical durability: 30 Mcycles
- · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
- · Tightening torque: 1.2Nm
- · Ambient operating temperature: -40°C to 70°C
- · IP2x Degree of protection (front face)
Technical Specifications
Technical Specifications
Contactor relay | |
| Width | 45 mm |
|---|---|
| Interface | No |
| Manual operation | No |
| With LED indication | No |
| Operating voltage at DC | - - - V |
| Rated control supply voltage at AC 60 Hz | 110 - 110 V |
| Operating voltage at AC 60 Hz | 690 - 690 V |
| Operating voltage at AC 50 Hz | 690 - 690 V |
| Rated control supply voltage at DC | - - - V |
| Rated control supply voltage at AC 50 Hz | 110 - 110 V |
| Number of auxiliary contacts as change-over contact | 0 |
| Height | 58 mm |
| Mounting method | DIN-rail/screw |
|---|---|
| Rated switch current | 0.005 A |
| Depth | 57 mm |
| Number of auxiliary contacts as normally open contact | 5 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Rated operation current | 10 A |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Rated operation current Ie, 400 V | 10 A |
| Voltage type for actuating | AC |
| Connection type auxiliary circuit | Screw connection |
| Voltage type (operating voltage) | AC |
