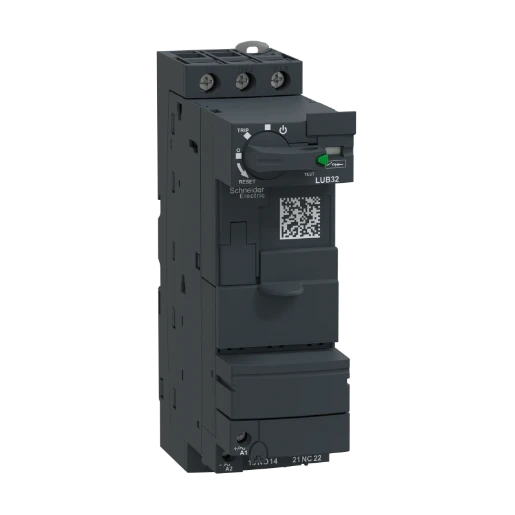

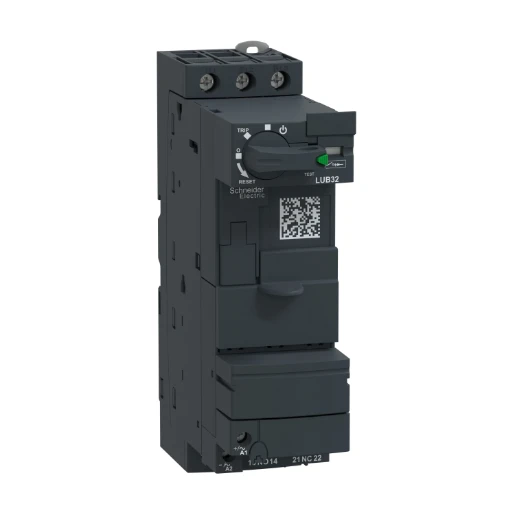

Power Base Screw Terminal 3 Pole 32A 1 Normally Open 1 Normally Closed
Part Number:
2500187051
MPN:
LUB32
- Product Type:
- Motor Starters
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a -all in one- starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- · TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V.
- · Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions.
- · It is equipped with a control terminal block, and blanking shutters covering the empty cavities.
- · It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour.
- · Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle.
- · Shock resistance: 10-15gn (open/closed)
- · Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- · Mechanical durability: 15000000 cycles
- · IP20/40 Degree of protection
- · Ambient temperature: -25°C to 60°C
Technical Specifications
Technical Specifications
Motor starter/Motor starter combination | |
| Supporting protocol for PROFIBUS | No |
|---|---|
| Supporting protocol for Data-Highway | No |
| Supporting protocol for INTERBUS | No |
| With fuse | No |
| Supporting protocol for ASI | No |
| Supporting protocol for MODBUS | No |
| Suitable for emergency stop | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for TCP/IP | No |
| Temperature compensated overload protection | No |
| With short-circuit release | Yes |
| External reset possible | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for LON | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for PROFINET IO | No |
| With transformer | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for CAN | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for DeviceNet | No |
| Rail mounting possible | Yes |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for other bus systems | No |
| Number of indicator lights | 0 |
|---|---|
| Degree of protection (IP rating) | IP20 |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Voltage type for actuating | AC/DC |
| Rated operation current at AC-3, 400 V | 32 A |
| Number of command positions | 3 |
| Rated conditional short-circuit current, type 2, 400 V | 50000 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | 4000 A |
| Rated operation power at AC-3, 400 V | 15 kW |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | 10000 A |
| Number of auxiliary contacts as normally closed contact | 1 |
| Rated conditional short-circuit current, type 2, 230 V | 50000 A |
| Number of auxiliary contacts as normally open contact | 1 |
| Type of electrical connection of main circuit | Reflector |
| Depth | 126 mm |
| Ambient temperature, upper operating limit | 70 °C |
| Height | 154 mm |
| Rated operation power at AC-3, 230 V, 3-phase | 7.5 kW |
| Width | 45 mm |
| Rated power, 575 V, 60 Hz, 3-phase | 15 kW |
| Rated operation current Ie | 32 A |
| Rated power, 460 V, 60 Hz, 3-phase | 15 kW |
| Rated control supply voltage at AC 60 Hz | 24 - 240 V |
| Overload release current setting | - - - A |
| Rated control supply voltage at AC 50 Hz | 24 - 240 V |
| Rated control supply voltage at DC | 24 - 220 V |
