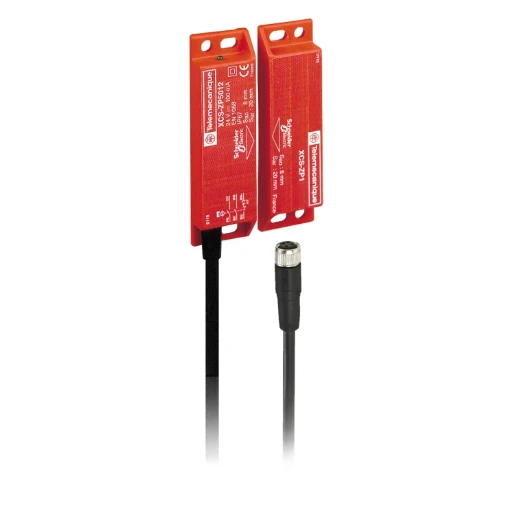

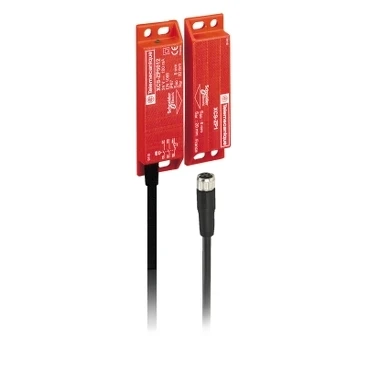

Coded magnetic switch XCSDMP, 2 NC, staggered, M12 0,15m
Part Number:
2500210753
MPN:
XCSDMP790L01M12
- Product Type:
- Guard Switches Mechanical
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 normally closed staggered contacts in presence of magnet. It has a rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
- · This XCSDMP Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia.
- · It has 2 normally closed staggered contacts in presence of magnet.
- · It has a rectangular design with a 15 centimeter PVC cable connection, allowing for flexible installation.
Technical Specifications
Technical Specifications
Magnetic proximity switch | |
| Housing material | Plastic |
|---|---|
| Explosion safety category for gas | None |
| Type of switching output | Relay contact |
| Type of electric connection | Connector M12 |
| Construction type housing | Cuboid |
| Performance level acc. to EN ISO 13849-1 | Level e |
| Mechanical mounting condition for sensor | Not flat |
| SIL according to IEC 61508 | 3 |
| Type of actuation | Magnet |
| Voltage type | AC/DC |
| Degree of protection (IP rating) | IP67K |
| Min. output current | 100 mA |
| Switching distance | 20 mm |
| Max. output current at protected output | 100 mA |
| Width sensor | 25 mm |
| Length of sensor | 13 mm |
| Height of sensor | 88 mm |
|---|---|
| Diameter sensor | - mm |
| Number of protected contact energized outputs | 0 |
| Number of protected semiconductor outputs | 0 |
| Number of contact energized outputs with signalling function | 0 |
| Number of semiconductor outputs with signalling function | 0 |
| Protected switch distance OFF | 20 mm |
| Protected switch distance ON | 8 mm |
| Ambient temperature | -25 - 85 °C |
| Rated supply voltage at AC 50 Hz | - V |
| Rated supply voltage at AC 60 Hz | - V |
| Rated supply voltage at DC | 24 - 24 V |
| With monitoring function downstream switching devices | No |
| With status indication | No |
| Suitable for safety functions | Yes |
| Cross-/short circuit identification possible | Yes |
